Overview

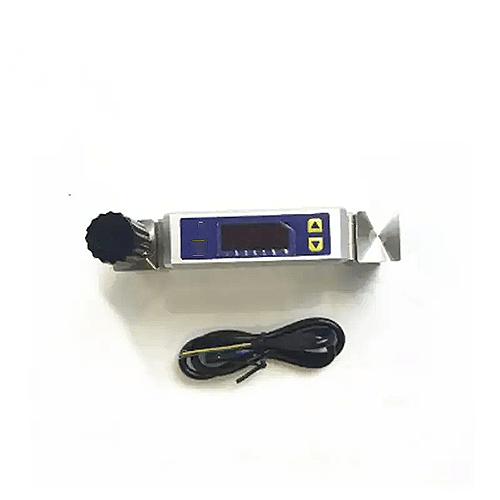

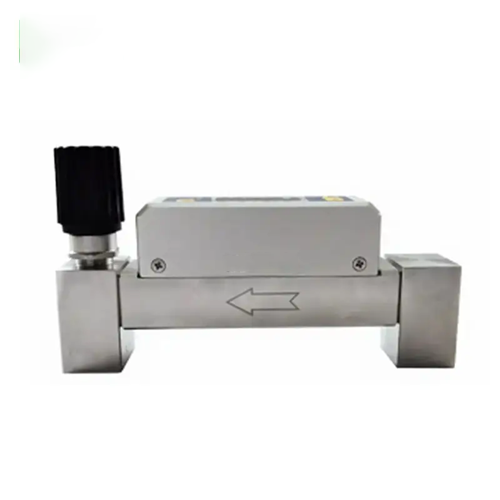

Enviro Testers small fLow range mass flow meters are made with MEMS sensing technology. It applies for clean and dry gas metering and control. The meter is designed with the structure of a rotameter but with the full capability of a digital gas mass flow metrology and LED display. Both instant and accumulated flow rate can be read and displayed. The front buttons let users access and adjust the parameters as well as stored data. The standard RS485 Modbus enables remote access and integration.
Features
- Direct mass flow measurement with high accuracy
- Multiple sensing elements for extended rangeability over 100:1
- Easy remote accessible user interface with RS485 Modbus
- Bright LED display for instant and accumulated flow rate
- Record flow rate patterns with over range indication
- Easy for remote communication and integration
- Compatible with traditional rotameter mechanical connections
- Flow range & mechanical dimensions can be fully customized
Technical Specification
| Parameters | MF 4601, MF 4603, MF 4608 |
| Flow Range | 0 SCCM to 100 SCCM; 200 SCCM; 500 SCCM
0 SCCM to 1 SCCM, 2 SCCM, 5 SCCM 0 to 10 SCCM, 20 SCCM, 50 SCCM |
| Rangeability | 50:1 |
| Accuracy | ±2.5% FS ±0.5% FS |
| Repeatability | ±0% 0.8% |
| offset stability | 0.1% FS |
| span stability | ±0.12% / °C |
| Response time | 10 m/s |
| Power supply | 8 V to 24 V DC, 50 mA max |
