Overview

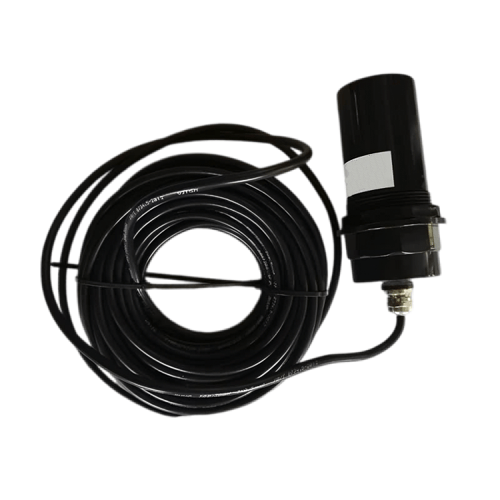

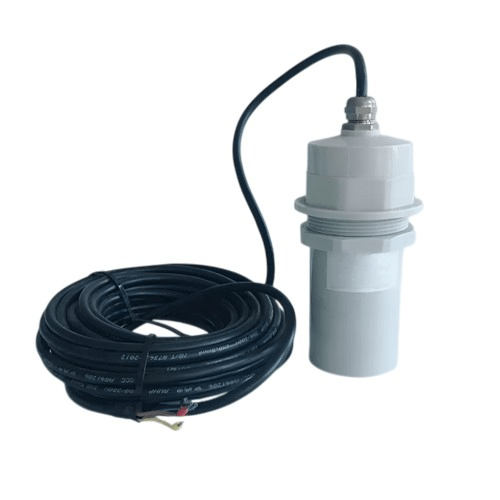

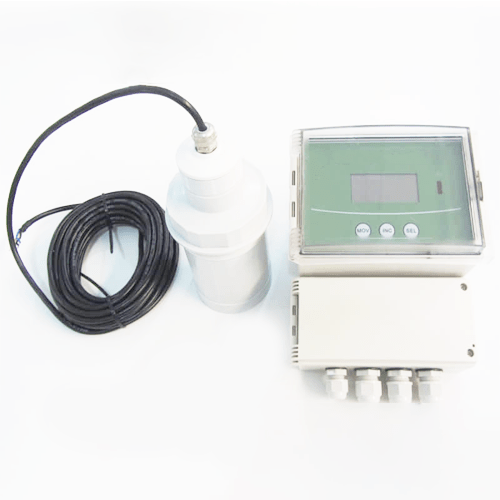

Enviro Testers sonic fuel sound level meter is fully functional, with optional multiple relays (6 pcs at most) and communication methods, multi-point measurement, ultrasonic liquid level meter can also be customized according to customer demand the desired function. Can be equipped with an easy to operate remote controller.
Technical Specifications
| Accuracy | 0.2% Full span (In air) |
| Measuring range | 0 ft to 131.2 ft (0 m to 40 m) based on different types of probes |
| Output Current | DC 4 mA to 20 mA |
| Output Load | 0 Ω to 500 Ω |
| Output Resolution | 0.03% Full span |
| Mode of Indication | 14 Digit LCD in 2 rows with backlight |
| Display Resolution | (0.04 in (1 mm), 0.39 in (1 cm) |
| Switching Output | 2(high and low) |
| Serial Communication | RS 485 |
| Baud Rate | 19200, 9600, 4800 |
| Power Supply | DC 21 V 0.1 A
AC 85 V to 256 V, 0.05 A |
| Measuring Cycle | 1.5 second |
| Parameter Setup | 3 indication buttons |
| Temperature Range | -40 °F to 167 °F (-40 °C to 75 °C) |
