Overview

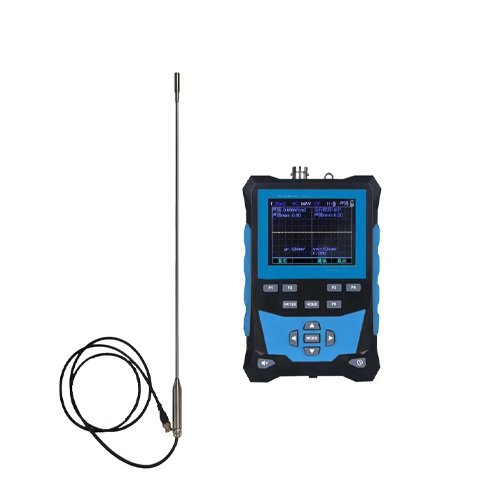

Enviro Testers Sound Intensity Measuring Meter has ultrasonic strength in the liquid sound field that is the most important index of the ultrasonic system. There is a direct influence for the cleaning effect of cleaning machine and work efficiency of the ultrasonic processor. Ultrasonic power measuring instrument can measure the strength of the sound field whenever possible, quickly and easily. Moreover, it directly indicates the sound numerical value. According to the different fields of use, the ultrasonic power measuring instrument can be made into portable and monitoring types.
Features
- Wide Sound Intensity Range
- Versatile Frequency Range
- Temperature Flexibility
- Liquid Compatibility: Designed for use with liquids in the pH range of 4 to 10.
- Reliable Power Source
- Rapid Response Time: Provides quick measurements
- Adjustable Probe Length: Offers options in probe length
- Sturdy Titanium Build: Constructed with durable titanium material
- Compact Design
- User-Friendly Display: Features an LCD screen for easy readouts
- Flexible Power Options: Can be powered by either a 9V battery or an external power supply
Technical Specifications
| Range of Sound Intensity | 0.1 W/cm² to 150 W/cm² |
| Range of Frequency | 10 Khz to 1 Mhz |
| Service Temperature | 32 °F to 212 °F (0°C to 100 °C) (common) 32 °F to 932 °F (0 °C to 500 °C) (high temperature) |
| Supply Voltage | 220 V |
| The Response Duration | less than 0.1 second |
| Length of Probe | 11 in, 15 in, 19 in, and 23 in (300 mm 400 mm 500 mm 600 mm) (optional) |
| Material of The Prode | titanium |
| Screen | LCD |
| Power Supply | 9 V Battery or External Power Supply |
| Size | 3.9 in x 7.8 in x 1.1 in (100 mm x 200 mm x 30 mm) |
