Overview

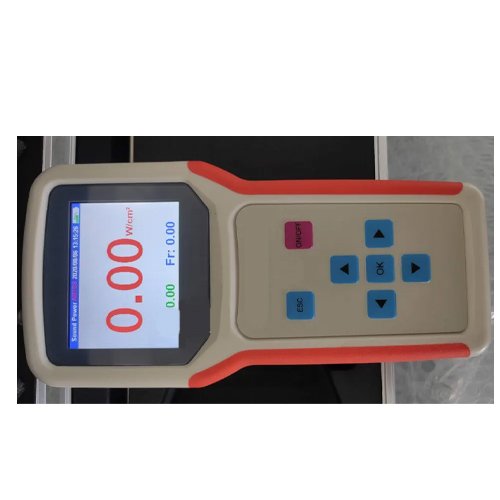

Enviro Testers Sound intensity Meter measures the intensity of sound field quickly and conveniently at any time and place and gives the value of sound power intuitively. Ultrasonic intensity (sound power) in liquid sound field is one of the most important indexes of ultrasonic system. It has a direct influence on the cleaning effect of the cleaning machine and the working efficiency of the ultrasonic processor.
Features
- Realize one key automatic measurement and display sound intensity value
- Above 200I series with digital readout sound intensity value and frequency
- 2 in (81 mm) color LCD with LED backlight
- Built in 2300 mah lithium battery pack, external AC power adapter
- Automatic shutdown without signal input within 10 minutes
- This instrument is simple to use and accurate in measurement
- Frequency measurement above 200I series has intelligent gear setting mode
- Real time power detection to remind users in time
- Power saving mode, long working time
Technical Specifications
| Measuring range | 0 w/cm2 to 25.4 w/cm2 |
| Resolution ratio | 0.01 w/cm2 |
| Frequency range | 10.0 KHz to 200.0 KHz |
| Frequency measurement way | Intelligent gear setting |
| Data display | Instantaneous value, maximum value, instantaneous frequency, sound intensity curve, recorded value |
| H/Storage groups | 200 groups |
| Range switching | Manual / automatic |
| Calibration function | Yes |
| Fluid temperature | 32 °F to 275 °F (0 °C to 135 °C) |
| Frequency display | Yes |
| standby power (W) | 10 |
| Power display | Yes |
| Energy saving mode | Yes |
| Display mode | 3.2 in (81 mm) TFT |
| Power supply mode | 3. 7 V x 2 Li-On rechargeable |
| Operation mode | Membranebutton |
| Probe material | routine |
| Probe housing | Stainless steel sealing pipe |
| Probe length (customizable) | 19.6 in (5000 mm) stainless steel probe + 19.6 in (5000 mm) cable |
