Overview

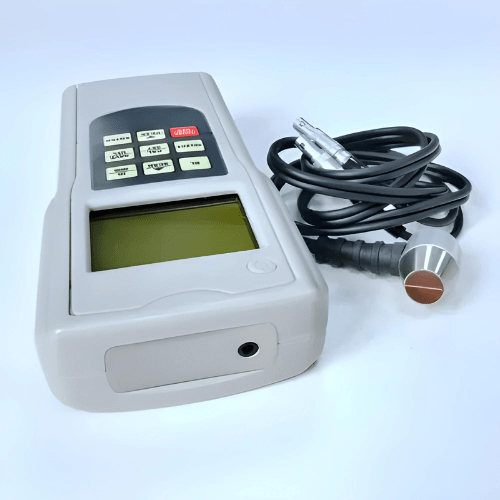

Enviro Testers Steel Metal Thickness Meter determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material, reflect from the back or inside surface, and be returned to the transducer. The measured two-way transit time is divided by two to account for the downand-back travel path, and then multiplied by the velocity of sound in the material.
Features
- Dual modes Pulse-Echo for flaws, Echo-Echo for paint thickness
- Utilizing advanced, energy-efficient microprocessor technology for optimal performance
- Automated memory for material code and sound velocity, user-friendly
- Use USB/RS-232 data output to connect with PC
- Provide Bluetooth data output choice
Technical Specifications
| Unit System | Metric system or British system (optional) |
| Display | LCD with backlight |
| Range | Pulse-Echo mode: (0.65 mm to 600 mm)(0.0256 in to 23 in) (in Steel) Echo-Echo mode: (3 mm to 60 mm)(0.012 in to 2.3 in ) |
| Resolution | 0.1 mm or 0.01mm or 0.001 in |
| Accuracy | ±(0.5%n ), depends on materials and conditions |
| Measurement Period | 4 times per second for single point mode and 10 times per second for scan mode |
| Sound Velocity | 1000 m/s to 9999 m/s |
| Unit System | Memory for up to 20 files(99 values for each file)of stored values |
| Working Mode | There are two working modes of thickness measurement: single mode and scan mode |
| Operating Conditions | Temperature:(0 ºC to 40 ºC) 32 ºF to 104 ºF. Humidity:< 85% RH |
| Power Supply | 4 x 1.5 V AAA(UM-4)Battery |
| Dimensions | (142 mm x 72 mm x 34 mm )(5.5 in x 2.8 in x 1.3 in ) |
| Weight | (175 g ) 0.38 lb (Not Including Batteries) |
