Overview

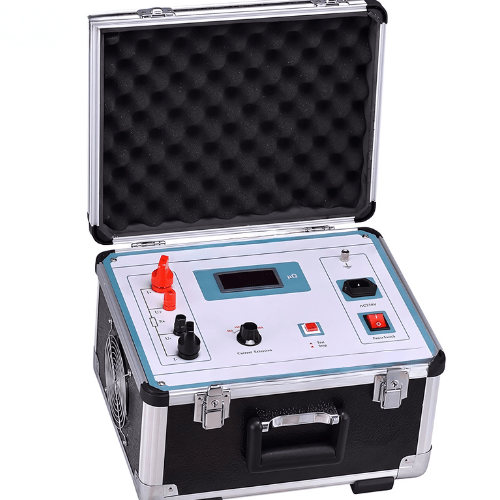

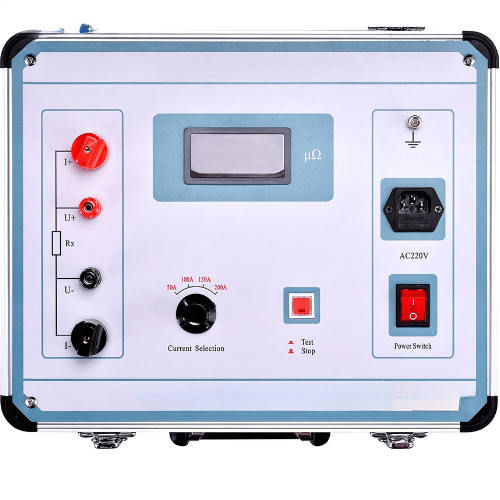

Enviro Testers switch resistance meter adopts the new technology of the power supply, which can continuously output large current for a long time. It overcome the defect of impulse instantaneous current of the power supply, and can effectively break through the oxidation film of switch contact and get good test results under the condition of serious interference the last bit data of LCD can be stable at + – word the scope of stable reading, good repeatability Micro Ohmmeter adopts high precision resistance, which effectively eliminates the influence of the environment temperature on the measurement results. Meanwhile, the use of military connectors enhances the anti vibration performance.
Features
- High current
- Contact oxidation film.
- Strong anti-interference ability
- Long service life
- Easy to carry.
Technical Specifications
| Measuring Range | 1 μ ohm to 1999 μ ohm |
| Resolution | 1 μ ohm |
| Test Current | DC50 A、100 A、150 A、200 A Four speed fixed output |
| Accuracy | 0.5 % ± 1 d |
| Way To Work | The connection |
| Display | Three and a half LCD |
| Power Supply | AC220 V + – 10 % 50 Hz |
| Working Environment | Humidity ≤ 80 % RH Temperature 14 °F to 104 °F (-10℃ to 40℃) |
| Size | 14.5 in x 12.5 in x 10.2 in (370 mm × 320 mm × 260 mm) |
| Weight | 21.16 lb (9.6 kg) |
