Overview

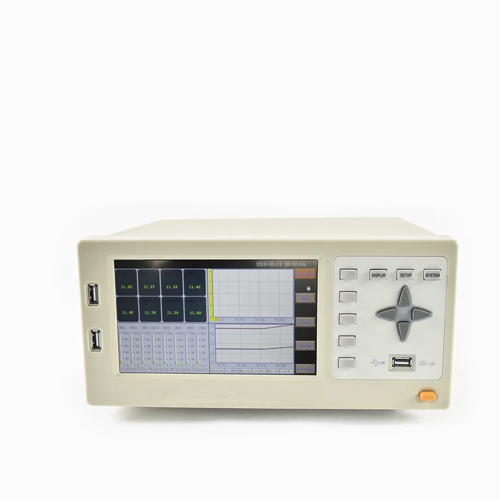

Enviro Testers Temperature and humidity data acquisition logger is a multi-function inspection unit with 24 units 24-bit high-precision sampling channels, each channel can be independently configured, supporting four input modes, thermocouple, platinum resistance, humidity sensor and analog quantity; when configured as humidity sensor mode, the instrument can simultaneously provide up to 24 units 5V power output for the sensor power. The product can be connected to the PC terminal or mobile terminal by wired or wireless way, and is suitable for the temperature field, humidity field, uniformity, and volatility test of various temperature (humidity) environment experimental equipment, industrial furnace, and verification furnace.
Features
- Independent channel synchronous acquisition
- Flexible channel configuration
- High precision thermocouple cold junction
- Statistical data analysis
- Data encryption
- Wireless LAN
- Large capacity storage
- Rich and friendly human-computer interaction functions
Technical Specifications
| Power requirement | 12 VDC, 2 A |
| Communication interface | RS232, LAN Wireless |
| Shell material | Alufer + ABS |
| Environment | Use 41 °F to 95 °F (5 ºC to 35 ºC), (0 % to 85 % rh)Store 32 °F to 158 °F (0 ºC to 70 ºC), (0 % to 100 % rh) |
| Module size | 9.84 in x 6.69 in x 2.75 in (250 mm × 170 mm× 70 mm) |
| Module weight | 3.5 lb (1600 g) |
