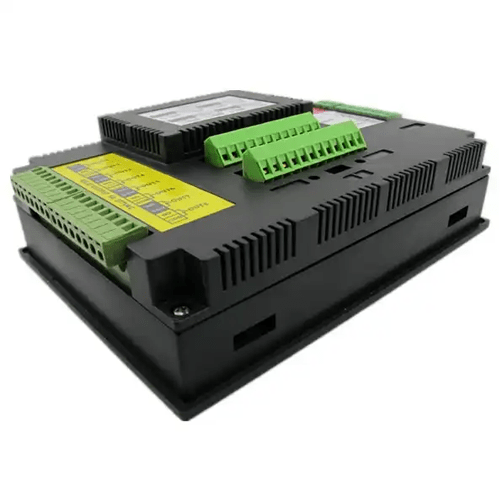

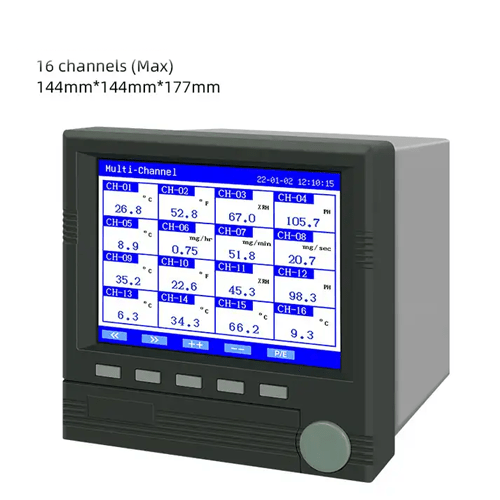

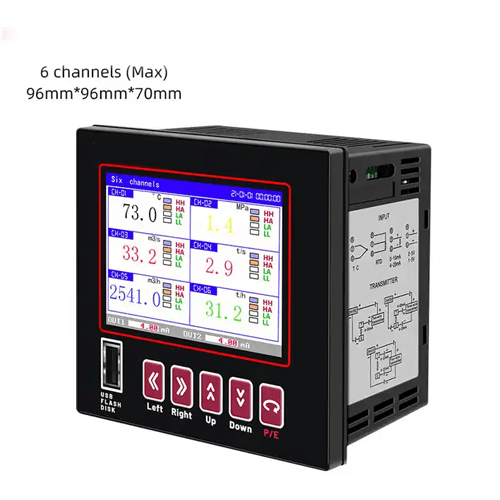

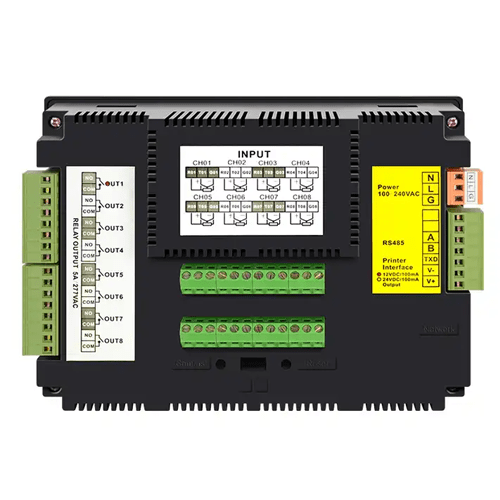

Enviro Testers Temperature Controller Data Logger

Enviro Testers Temperature Controller Data Logger is completely isolated universal input, such as thermocouple, thermal resistance, current voltage, temperature, liquid level, pressure, voltage, current, flow, vibration frequency input; Adopt modularized structure to output alarm, sensor auxiliary power supply, forwarding, printing, communication and other functions.

SKU: ETETTDL-116 Category:

Overview

Enviro Testers Temperature Controller Data Logger is completely isolated universal input, such as thermocouple, thermal resistance, current voltage, temperature, liquid level, pressure, voltage, current, flow, vibration frequency input; Adopt modularized structure to output alarm, sensor auxiliary power supply, forwarding, printing, communication and other functions. Measurement data can be displayed in a variety of types, such as bar chart graphic display, real-time trend, historical trend memory, real-time circular chart, historical circular chart memory, alarm state display, etc.



Technical Specification

Sampling Rate ≤1 s
Temperature Shift Coefficient Standard value 50 PPM
CMR Ratio 85 dB to 110 dB
Input Independence 0 V DC to 5 V DC and 1 V DC to 5 V DC input 500 K Ω
Isolation Isolated voltage between channels and ground 1000 V
Input Error Action Max, Min, Hold
Power supply VAC 100 V AC to 240 V AC, frequency 47 Hz to 63 Hz, max. power consumption 5 V A
Aux. power supply 24 V DC
Processor 32 bits
Hardware guider CPU inner integration for long time, stable and safe operation
Display 7.0 in, 320 pixels x 240 pixexls TFT, Color LCD display
Relative humidity 10 % to 85 %
Net Weight 2.20 lb (1 kg)
Working Temperature 32 °F to 122 °F (0 ℃ to 50 ℃)
Size 7.67 in x 5.70 in x 2.38 in (195 mm x 145 mm x 60.5 mm)
