Features

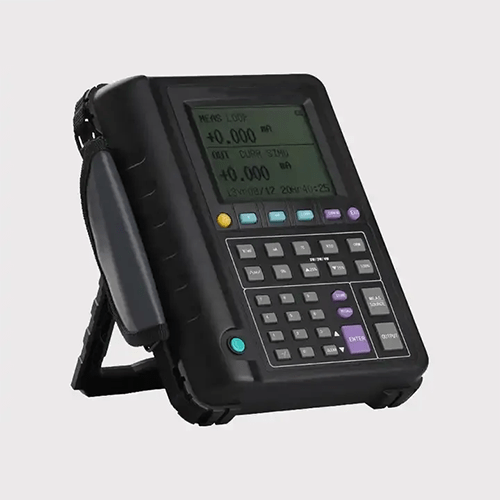

- A split-screen display
- The upper display allows users to measure volts, current
- Lower display measure and source volts, current, resistance temperature detectors
- A thermocouple (TC) input or output terminal
- Cold junction temperature compensation
- Ambient temperature can be set and calibrate within the menu function
- Each parameter can manual and automatic stepping and ramping output
- Signal output can be arbitrarily set within the 0% and 100% of the value
- In the configuration menu can be set manually
- Power off time for Instrument, Backlight off time, Screen Contrast
- Cold junction compensation ON or OFF, HART resistance ON or OFF and ETC
- Calendar & clock function
- It can store 8 measurement and output data
- Settings and the functions of the last operation can be auto stored after power off
- Large capacity rechargeable battery
- Power adapter, integrated charge-management functions
- Novel shape, large screen dot-matrix graphic display
- Display Chinese characters
- Digital key to input personalized, make the operation simpler
- The meter provides 24 V voltage output
Technical Specifications
| DC Voltage | Measure signal 0 V to 30 V Measure accuracy 0.02%+3 counts (The upper display) Measure signal 0 V to 24 V Measure accuracy 0.01%+10 counts Measure signal -10 mV to 80 mV Measure accuracy 0.01%+10 counts (use the thermocouple jack) |
| DC Current | Measure signal 0 mA to 24 mA Measure accuracy 0.02%+4 counts (the upper display) Measure signal 0 mA to 24 mA Measure accuracy 0.02%+ 4 counts (the lower display |
| Resistance | Measure signal 0 Ω to 400 Ω Measure accuracy 0.1 Ω (4 wire), 0.15 Ω (2 wire and 3 wire) Measure signal 400 Ω to 4000 Ω Measure accuracy 0.5 Ω (4 wire), 1 Ω (2 wire and 3 wire) |
| DC Voltage | Output range 0 V to 20 V Output accuracy 0.02%+3 counts Output range 0 mV to 90 mV Output accuracy 0.01%+10 counts Output range -10 mV to 80 mV Output accuracy 0.01%+10 counts (use the thermocouple jack) |
| DC current | Output range 0 mA to 24 mA Output accuracy 0.02%+4 counts |
| Resistance | Output range 5 Ω to 400 Ω Output accuracy 0.15 Ω (Excitation current 0.15 mA to 0.5 mA), 0.1 Ω (Excitation current 0.5 mA to 2 mA) Output range 400 Ω to 4000 Ω Output accuracy 0.5 Ω (Excitation current 0.05 mA to 0.8 mA) |
| Power | 1.2 V x 8 Ni-MH rechargeable batteries |
| Accuracy | 0.025% |
