Features

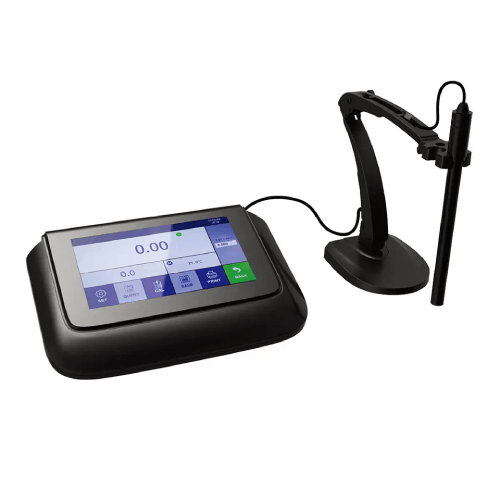

- 7 in (177.8 mm) touch screen automatic 1 point calibration conductivity EC meter
- OEM, ODM customized support
- 1 μS/cm and 0.1 mS/cm resolution
Technical Specifications
| Measurement range | (0.00 to 20.00) μS / cm (20.0 to 200.0) μS / cm (200 to 2000) μS/cm (2.00 to 20.00) mS/cm (20.0 to 200.0) ms / cm |
| Resolution | 0.01 μS/cm / 0.1 μS/cm / 1 μS/cm 0.01 mS/cm / 0.1 mS/cm |
| Accuracy | Electrode: +1.0 % FS, Instrument: +1.50 % FS |
| Temperature range | 14 °F to 246 °F (-10 °C to 110 °C) |
| Temperature compensation | 32 °F to 212 °F (0 °C to 100 °C) |
| Temperature accuracy | 41 °F to 140 °F: +32.9 °F (5 °C to 60 °C: ± 0.5 °C), Others: 33.8 °F
(±1.0 °C) |
| Electrode constant | 3.94 in (100 mm) |
| Calibration | 1 point |
| Single package size | 20.8 in x 18.5 in x 5.9 in (528.3 mm × 469.9 mm × 149.8 mm) |
| Single gross weight | 11.02 lb. (5 kg) |
