Overview

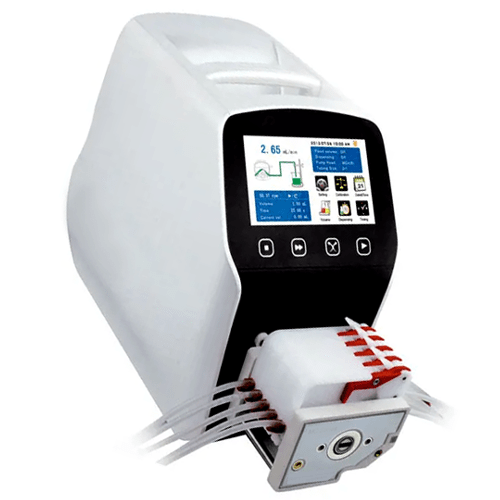

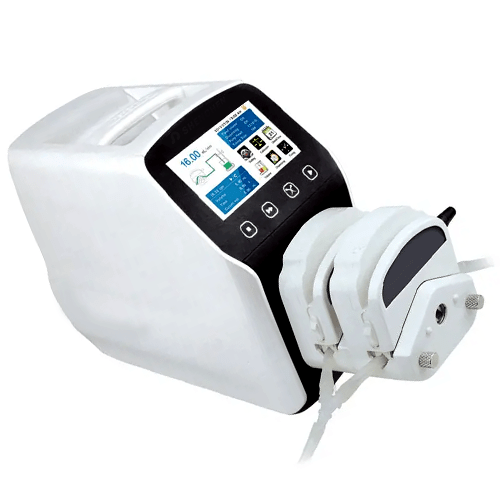

Enviro Testers Touch Screen Peristaltic Pump has a flow range of 0.07-570ml/min. It adopts a color LCD touch screen with intuitive and clear displaying interface, easy to operate. Mainly used for accurate measurement and distribution of fluid. If need high accuracy when dispensing, volume dispensing mode is available; If need high producing efficiency, time dispensing mode is more convenient; If want to separate fluid to number of equal parts, copy dispensing mode would be best. When working in flow mode, it is the same as an intelligent flow peristaltic pump. The pump adopts intelligent temperature-control technology to reduce working noise. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to relate to other equipment, such as computer, human machine interface and PLC.
Features
- LCD display, touch screen control
- ABS plastic housing
- Preset dispensing volume4
- Online calibration
- Flow accuracy: ±0.5%
- Store 60 commonly used data sheet
- Used for handling all kinds of fluid
Technical Specifications
| Flow Rate Range | 0.035 ml/min to 2280 ml/min |
| Speed Range | 0.5 rpm to 600 rpm |
| Speed Resolution | 0.1 rpm |
| Testing Time Range | 0.5 s to 999 s |
| Output Pressure | 0.1 Mpa |
| Motor Type | Stepper motor |
| Display | LED screen |
| Control Method | Mechanical keypad |
| External Control Signal | 0 V to5 V |
| Start/Stop | Passive switch signal |
| Direction Signal | Active switch signal: 5V |
| Communication | RS 232 or RS 485 |
| Output Interface | Output motor working status |
| Power Supply | AC 220 V 10 |
| Drive Dimension | 7.2 in x 5.2 in x 7.6 in (183 mm x 131 mm x 194 mm) |
| Drive Weight | 9.92 lb. (4.20 kg) |
| Power Consumption | <50 W |
| Environment Temperature | 0 °F to 98 °F (0 ºC to 40 ºC) |
