Overview

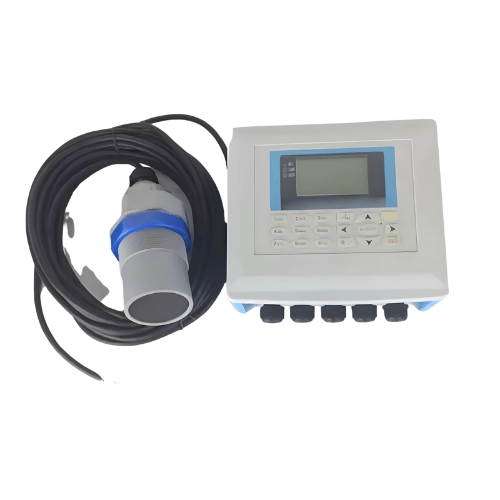

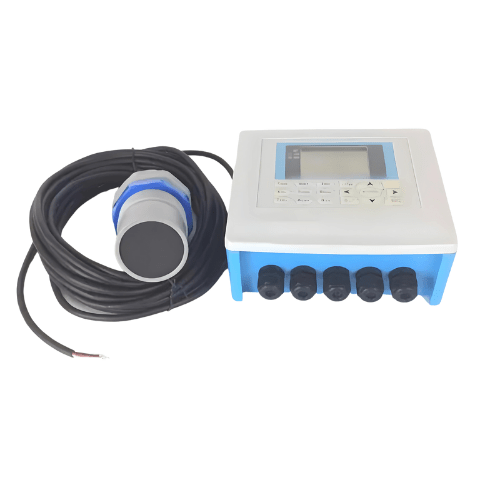

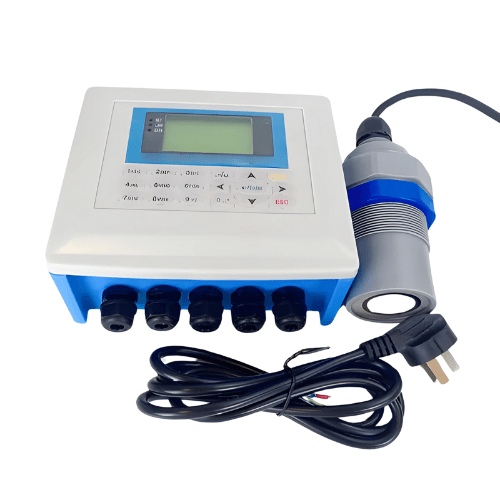

Enviro Testers ultrasonic fuel level sensor with a data logger can accurate m measurement, reliable work, the appearance of generous, and so on. Using large-scale integrated circuits, an imponent chip rate of 90%, to ensure the long-term reliability of the product. While reducing its power consumption to a very low, the use of large-sclarge-screens supports SD card data acquisition and serial data download, ta download, d ten interference echo points.
Features
- International electrical interface easy to take
- The sensor is strong and stable for harsh industrial situations
- Strong anti-interference
- 4 mA to 20 mA current output, optional field bus interface
- Can manually set blind area
- Support blue-tooth, GPRS, Mini SD card, USB, Mini printer (option)
Technical Specifications
| Range | 6.56 ft to 98.42 ft (2 m to 30 m) optional |
| Minimum display resolution | 0.1 cm (1 mm) |
| Accuracy | ±0.3% F.S |
| Analog signal output | 0 mA to 20 mA, 4 mA to 20 mA >300Ω 0 V to 5V, 0 V to 10 V |
| Switch output | 2 lines NPN/Relay (AC 5A 250 V DC 10 A 24 V) |
| Case material | ABS plastics, Nylon |
| Protection grade | IP 65 and Exilian BT 4 Gb |
| Blind area | 0.98 ft to 4.92 ft (0.3 m to 1.5 m) |
| Frequency | 20 KHz to 200 KHz |
| Display | English bilingual LCD, colorful TFT (option) |
| Sensor material | 10m shielded cable (option the length) |
| Work power | DC 12 to 24 V or AC 220 V |
| Interface | G1 1/2, M 60 × 2, M 30 X 1.5 or DN 80 non-stander flag Range 65.61 ft to 98.42 ft (20 m to 30 m) |
