Technical Specifications
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading at rates >0.2 mps |
| Response Time | 0 seconds to 999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | 0.79 in to 236.22 in (20 mm to 6000 mm) |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4 x 8 Chinese characters or 4 x 16 English letters |
| Communication Interface | RS-232, baud-rate from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry. |

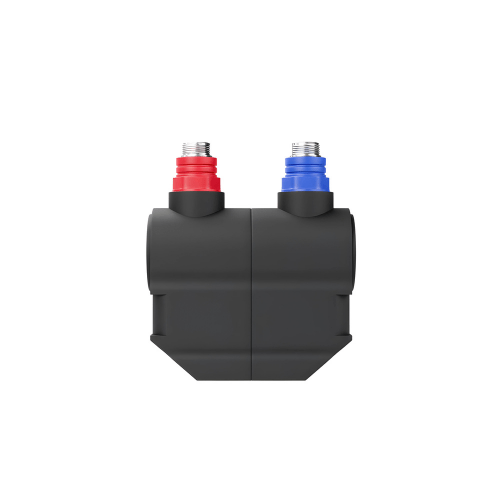

| Transducer Cord Length | Standard 16.4 ft (5 m) x 2, optional 32.81 ft (10 m) x 2 |
| Power Supply | 3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
