Overview

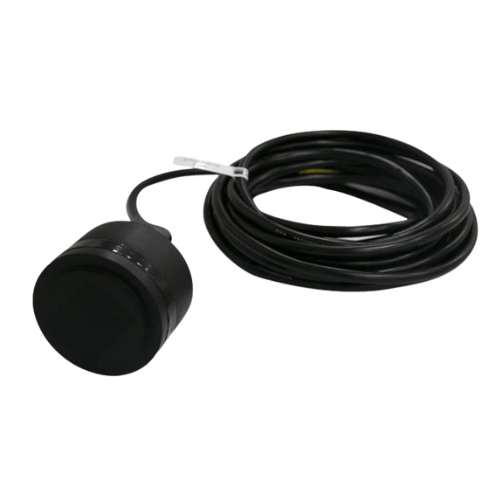

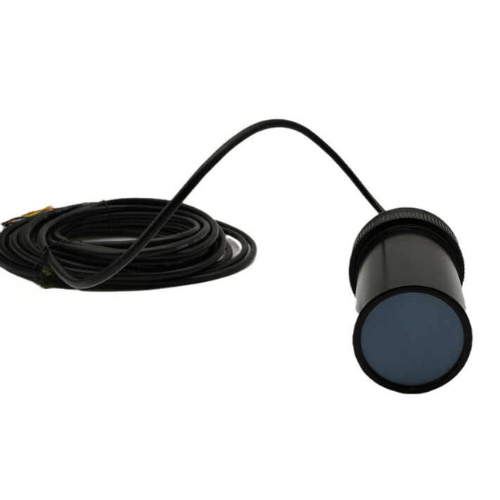

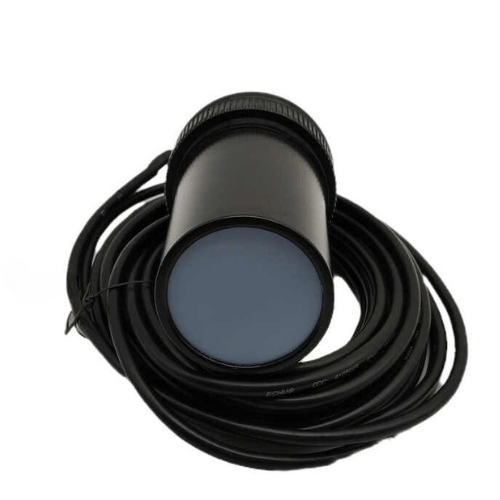

Enviro Testers ultrasonic level sensor is a adopts the principle of ultrasonic pulse for non-contact measuring equipment, which has the characteristics of simple installation, high measurement accuracy, stability and reliability, and wide applicability.
Features
- Compact and Lightweight
- IP68 for Durability
- Stable Non-contact Operation
- Built-in Echo Suppression
- Versatile Applicability
Technical Specification
| Measuring range | 0 in to 22.96 ft or 49.21 ft or 65.61 ft (0 m to 7 m , or 15 m or 20 m) or customized |
| Measurement accuracy | 0.39 in (1 cm) |
| Dead zones | < 9.84 in (< 25 cm) |
| Power consumption | < 1 W |
| Communication output | RS 485 |
| Sensor size | Φ2.12 in (54 mm), height 7.87 in (200 mm) (excluding cables and mountings) |
| Power supply voltage | 9 VDC to 16 VDC |
| Protection level | IP 68 |
| Operating temperature | -13 °F to 158 °F (-25 ℃ to 70 ℃) |
