Overview

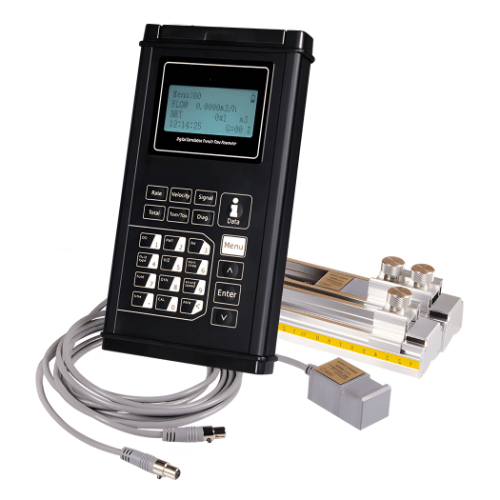

Enviro Testers Ultrasonic Liquid Flow Meter is a full function handle transfer time ultrasonic flow meter. No matter if you want to quickly verify the flow reading of another meter or to data log flow system values over an extended period, the ultrasonic liquid flow meter is the suitable tool. The portable meter has a clamp on transducers, no tapping or cutting is required, just clamp outside of the pipe. The meter can be easily moved and installed in different pipe and is convenient to carry site to site. Its portability makes it an excellent choice for measuring flows throughout the plumbing infrastructure to verify sensor, pump and valve performance.
Technical Specifications
| Flow range | ±0.03 ft/s to ±40 ft/s (±0.01 m/s to ±12 m/s) |
| Accuracy | ±1% of measured value |
| Fluid | Single medium liquid |
| Pipe Size | Clamp-on 1 in to 48 in (25 mm to 1200 mm) |
| Pipe Material | Carbon steel, stainless steel, PVC and other compact material pipe |
| Outputs | Analog output 4 mA to 20 mA, max load 750 Ω. Modbus: RS485 |
| SD Card | 16G |
| Power Supply | Rechargeable Lithium Battery Power, 3000 mAh (Continuous operation of main battery 16 hours). |
| Interval | 1 second to 99999 seconds |
| Humidity | Up to 99% RH, non-condensing |
