Overview

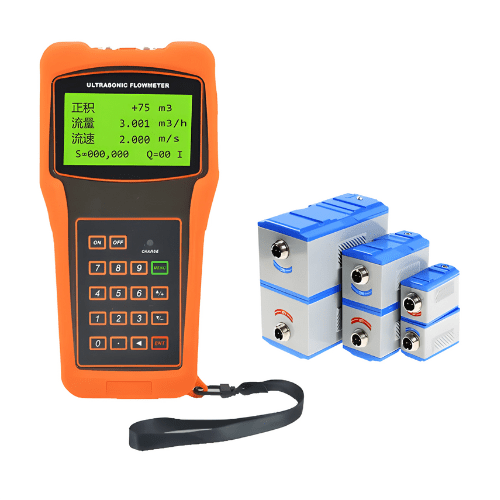

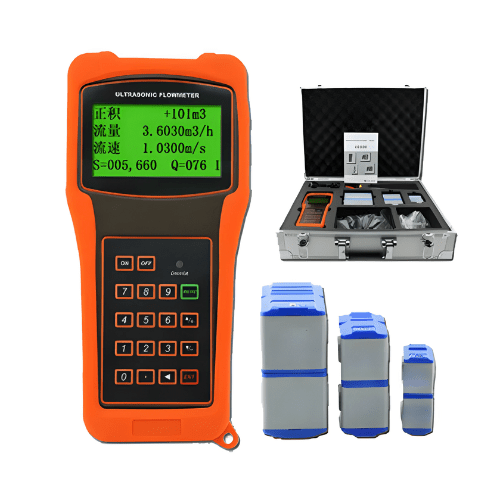

This Ultrasonic Liquid Flow Meter has Power supply mode DC8 to 36V or AC85 to 264V, Pipe diameter DN15 to DN6000, Fluid temperature -22 °F to 360 °F.
Technical Specifications
| Flow Rate Range | 0 to ±10/S, forward and reverse measurement |
| Measurement Accuracy | ±1% |
| Pipe Diameter | DN15 to DN6000 |
| Fluid Temperature | -22 °F to 360 °F (-30°C to 160°C) |
| Fluid Types | Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc., A single uniform liquid that can conduct ultrasonic waves |
| Pipe Material | Steel, stainless steel, cast iron, copper, PVC, aluminum, Glass fiber reinforced plastic and other dense pipes, lining allowed |
| Communication Interface | Isolated RS485 serial interface, support MODBUS protocol |
| Data Storage | SD card regularly stores the measurement results of the set parameter meter (optional) |
| Power Supply Mode | DC8 to 36V or AC85 to 264V |
| Signal Output | 1 channel 4 to 20mA current output, impedance 0 to 1K, accuracy 0.1% 1 channel OCT pulse output, Pulse width 6 to 1000ms 1 relay output (optional) |
| Signal Input | 3 channels of 4 to 20mA current input (optional) Connect three-wire PT100 platinum resistance to realize heat measurement |
