Overview

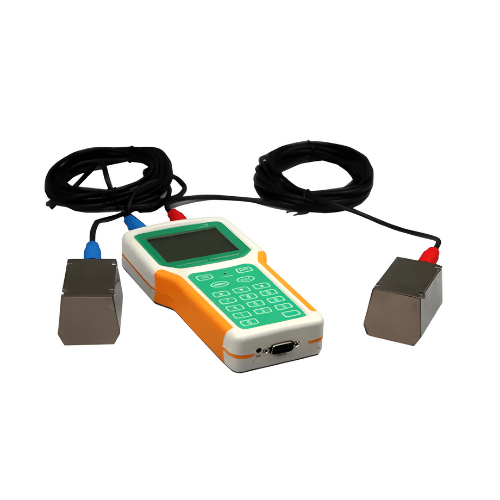

Enviro Testers Ultrasonic Liquid Flow Meter is a handhold portable transit-time ultrasonic flow meter with clamp-on transducers for non-invasive liquid measurement. Our microprocessor based, user friendly, field programmable flow measurement technique allows no interruption of the process flow and has low installation costs.
Features
- Four line LCD display with flow rate, totalizer and signal condition
- The flow meter is designed for high accuracy ±0.5% -Small size and light weight
- Wide range, velocities -Ni-MH Battery life for up to 10 hours continuous operation
- Transducers for pipe sizes of 15mm to 6000mm
- Transducers include magnet devise, which can install on metal pipe without mounting belt
- Data logger which records flow rate, date, total flow, signal condition… etc
- Response time less than 1 second
Technical Specifications
| Accuracy | 0.50% |
| Application | Liquid |
| Normal Diameter | DN25 to DN3000 |
| Ambient Temperature | -72 °F to +144 °F (-30 to +60℃) |
| Display | LCD |
| Power | AC220 (100 to 240V), 50/60HZ, 0.6A |
| Signal Output | Pulse/4 to 20mA |
| Protection Class | IP65 |
| Power Supply | Build-in Battery (>12 hour) |
