Overview
Enviro Testers Ultrasonic Liquid Level Indicator is designed to measure the presence or absence of liquid at a certain height position in a container or in pipelines. Measurable liquid containers can be made of various kinds of materials like metal, glass or unformed plastics. Maximum wall thickness of measurable containers is 30mm. Applicable to the detection of various types of liquids (without crystallization or other particulate matter). An ideal choice for the detection of dangerous toxic or corrosive liquids.Measurable medium, pure liquid, milky liquid, suspension liquid.
Applicable Tank co2 Tank with any of the following diameter ranges:
215 mm to 225 mm, 270 mm to 280 mm, 345 mm to 355 mm and 395 mm to 405 mm. All tanks outside the above tank diameter ranges can be considered as common type.The indicator has no requirement towards medium, height and pressure.
Features
- Probe Options
- No Couplant Needed

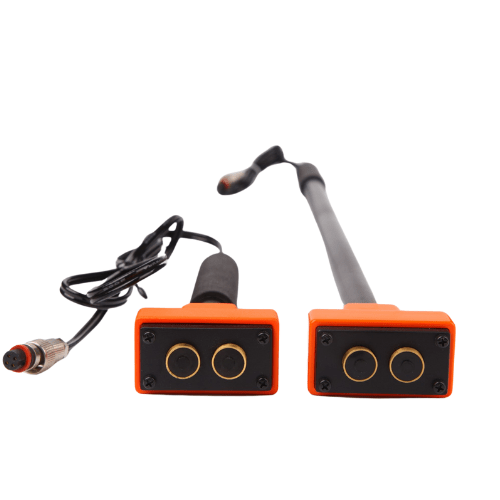

- Dual Sensor Probe
- Simple Liquid Display
- visually displayed
- power indicator light
- Housing Body
- Interface
- Mechanical switch
- Short start up time
- Easy handling
- Single battery
- Working up to 8 hours
- Convenient replacement
- Floating design
Technical Specifications
| Measurement accuracy | 0.19 in (± 5 mm) |
| Measurable range of wall thickness | 0.11 in to 1.18 in (3 mm to 30 mm) |
| Measurable tank material | Steel, stainless steel, glass, unformed plastics |
| Measurable medium | Pure liquid, milky liquid, suspension liquid (CO2, FM 200 ™, NOVEC ™ 1230, old Halons sunch as 1301 and 1211, FE 13 ™, FM 25 ™, FM 36 ™, HFC 225 & 2271) |
| Power supply | Two 18650 lithium batteries (prepared by user) |
| Current | 100 mAh (on average) |
| Operation duration(fully charged) | >8 hours |
| Display | OLED back-lit display |
| Warrant | 1 year warrant; lifetime customer technical support |
| Ambient temperature | -4℉ to +140℉ (-20 ℃ to 60 ℃ ) |
| Ambient humidity | 15% to 85%RH |
| Size | 16.53 in x 12.60 in x 5.11 in (420 mm x 320 mm x 130 mm) |
| Weight | 5.51 lb (2.5 kg) |
