Features
- Color 320 pixels x 240 Pixels OLED Display
- A-Scan Snapshot
- Echo-Echo Mode (Thru Paint & Coatings)
- Stores 100,000 Readings
- Gain: Low, Medium or High for varying test conditions
Technical Specification
| Measuring Principle | Fe |
| Measuring Principle | N Fe |
| Measuring Range | 0 µm to 1500 µm |
| Accuracy | ± <1% to 3% H +1> µm H refers to the thickness of testing piece |
| Minimum Resolution (Pm) | O.l pm |
| Min Curvature Of The Min Area | Convex: 0.19 in (5 mm), concave: 0.98 in (25 mm) |
| Diameter Of The Min Area | 0.27 in (7 mm) |
| Critical Thickness Of Substrate | 0.01 in (0.5 mm) |
| Memory | 1173 |
| Dimensions | 3.93 in x 2.55 in x 0.98 in (100 mm x 65 mm x 25 mm) |
| Power Supply | AAA Alkaline battery |

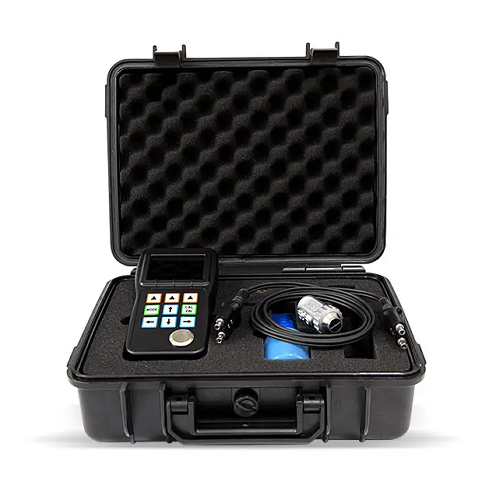

| Standard Configuration | Main Machine,4 calibration specimens (38 pm >126_m,183 pm, 249 pm) |
