Overview

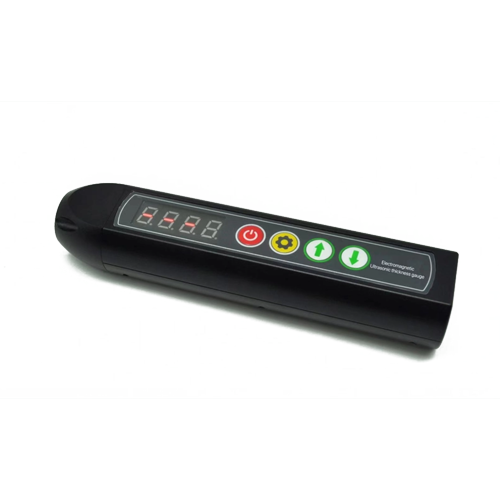

Enviro Testers ultrasonic portable thickness gauge tester is an ultra-small instrument that does not require acoustic coolant and can be used for non-contact measurement. It can measure the thickness of metal substances at room temperature and high temperature.
Features
- Ergonomically optimized design
- Easy to carry
- Superb thickness measurement technology
- High detection accuracy
Technical Specifications
| Continuous Working Time | 5 hrs. |
| Probe Frequency | 4 MHz |
| Probe Type | Normal temperature probe is standardly equipped, high-temperature probe is optionally equipped. |
| Measurement Accuracy | 0.002 in (0.05 mm) |
| Excitation Mode | Permanent Magnet |
| Power Supply | Lithium Battery |
| High Temperature Sound Velocity Compensation | Automatic |
| Temperature Range of Inspected Workpiece | -238 °F to 1472 °F (-150 ℃ to 800 ℃) |
| Environment Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Dimensions | 6.7 in x 1.57 in x 1.38 in (170 mm x 40 mm x 35 mm) |
| Weight | 0.55 lb. (250 g) |
