Overview

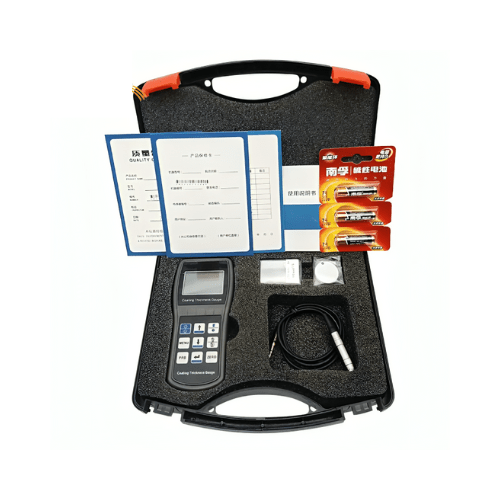

Enviro Testers ultrasonic thickness is applicable for measuring the thickness of any material in which ultrasonic waves can be transmitted and reflected back from the other face. The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Features
- Capable of performing measurements
- Sound Velocity Calibration function
- Coupling status indicator
- EL backlight and convenience in dark environment
- Have the battery indicator function
- Auto sleep and auto power off function
- Smart, portable, and high reliability
- Can collocate variety different frequencies
Technical Specifications
| Power | 1.5V AA size battery |
| Storage | 3000 values of saved data |
| Weight | 0.7 lb (340 g) |
| Measuring Accuracy | ± 0.5% H + 0.15 in ± (0.5% H + 0.04 mm) |
| Calibration Functions | Probe zero and two point calibrations |
| Velocity Range | 3280.8 ft/s to 32805.1 ft/s (1000 m/s to 9999 m/s) |
| Display | 128 x 64 LCD with LED backlight |
| Communication Port | USB |
| Customized Support | OEM ODM |
| Measuring Range | 2.9 in to 23.6 in (0.75 mm to 600 mm) |
