Overview

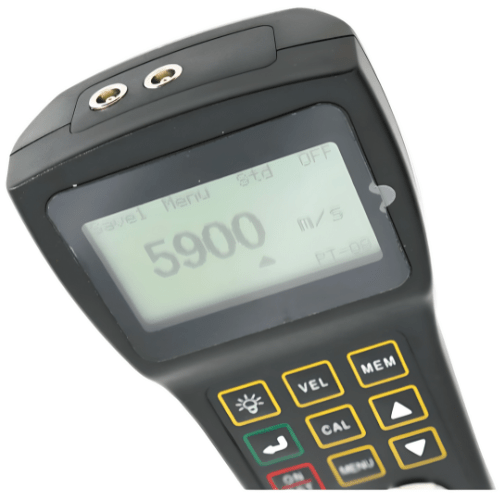

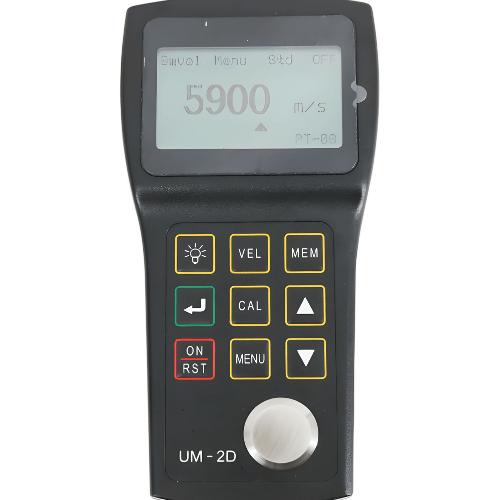

Enviro Testers ultrasonic thickness gauges is used for measuring Metal and Nonmetal Materials, include Plastic thickness measurement, Steel or Pipe thickness measurement, PVC thickness measurement and Glass Plates thickness measurement, etc. UM-2D has through coating function.
Technical Specifications
| Operating Principle | P-E (pulse-echo), E-E (echo-echo) with dual-crystal probes (Only for UM-2D) |
| 1-Point Calibration | For common thickness measurement |
| 2-Point Calibration | For curve surface or special thickness measurement application |
| V-Path Correction | Automatic |
| Update Rate | 4 Hz |
| Velocity Range | 0.0394 in/μs to 0.3937 in/μs (1000 to 9999 m/s) |
| Memory Function | 500 readings can be stored in 5 groups |
| Minimum Value Checking | Moving the probe along the surface of the testing material, the gauge can find the thinnest point automatically. |
| Velocity Storage | A total of 5 different materials velocities can be stored. |
| Communication Port | USB or Serial RS232 Port (Optional) |
| Software | Um View software for transmission, storage, analysis and documents editing (Optional) |
| Power | Two 1.5 V AA alkaline batteries (Warning with low battery voltage) |
| Operating Time | Up to 200 hours with alkaline batteries (without backlight) |
| Instrument Shut-Off | AUTO OFF after 5 minutes of inactivity |
| Operating Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Size | (149 mm × 73 mm × 32 mm) 5.86 in x 2.87 in x 1.25 in |
| Weight | 0.44 lb (200 g) |
