Overview

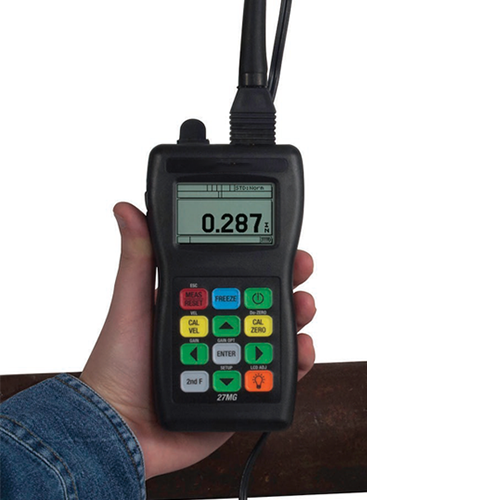

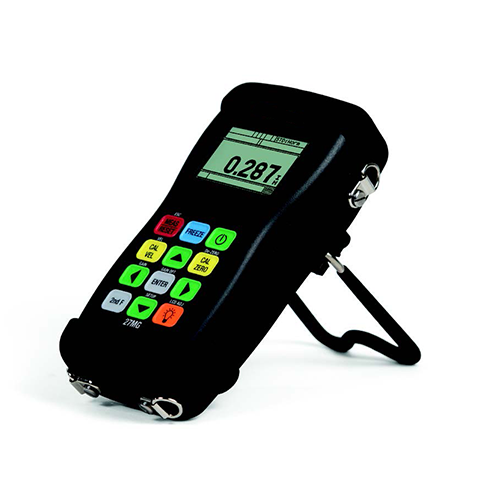

Enviro Testers ultrasonic thickness gauge tester is an affordable ultrasonic thickness gage designed to make accurate measurements from one side on internally corroded or eroded metal pipes, tanks, and other equipment. It weighs only 0.75 lb. (340 g) and is ergonomically designed for easy one-handed operation.
Features
- Digital ultrasonic thickness gauge
- Dual element transducer
- AA alkaline batteries
- Test block and coolant
- Carrying case
- Wrist strap
- User’s manual on CD
Technical Specifications
| Dual Element Transducer Measurement Mode | Time interval for a precision delay after the excitation pulse to the first echo |
| Thickness Range | 0.02 in to 25 in (0.5 mm to 635 mm), depending on material |
| Material Velocity Range | 0.02 in/μs to 0.074 in/μs (0.51 mm/μs to 18.7 mm/μs) |
| Transducer Frequency Range | 2.25 MHz to 10 MHz |
| Resolution | Low: 0.01 in (0.1 mm),
Standard: 0.001 in (0.01 mm) |
| Power Supply | 3 AA Alkaline Batteries |
| Battery Life | 150 hrs. of typical battery life,
30 hrs. continuous use with backlight |
| Receiver | 1 MHz to 18 MHz |
| Display | Holds or blanks the display after measurements |
| Backlight | Electroluminescent backlight |
| Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimensions | 3.31 in x 6.00 in x 1.56 in (84.00 mm x 152.4 mm x 39.6 mm) |
| Weight | 0.75 lb. (340 g) |
