Features

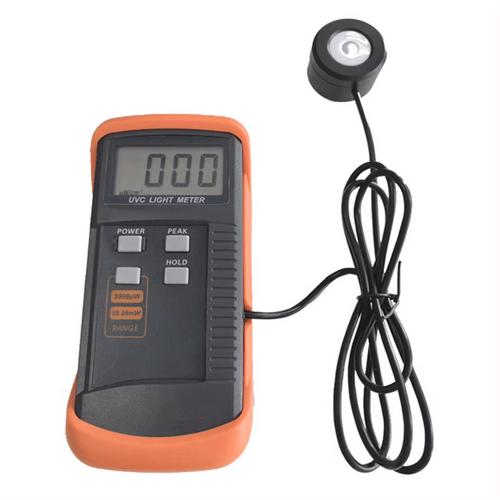

- Professional and quality UVC radiometer
- Narrow-band spectrum 248nm to 262nm, 254nm peak wavelength
- Large scale integrated circuit ensures high precision and stability
- UV probe comprises of isolate visible light window, narrow-band optical filter and gallium arsenide sensor
- Shell of aluminum alloy probe is equipped with fixed screw holes, which is convenient for the probe to be installed in a suitable position for measurement
- Wide measuring range, 1 µW/cm2 to 39.99 mW/cm2
Technical Specifications
| Wavelength Coverage | 248 nm to 262 nm |
| Peak Wavelength | 254 nm |
| Irradiance Measuring Span | 3999 µW/cm2, 39.99 mW/cm2 |
| Resolution Ratio | 1 µW/cm2 |
| Parasitic Light Beyond Ultraviolet Band | < 0.1 % |
| Accuracy | 8 % + 2 words |
| Sampling Rate | 2 times per second |
| Humidity | 0 to 80 % Rh |

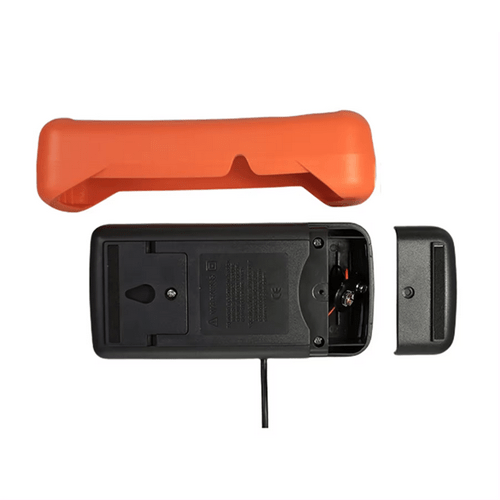

| Power Supply | DC 9 V (6F22 type) battery |
| Operating Current | about 2.7 mA |
| Dimension | 6.29 in x 3.07 in x 1.69 in (160 mm x 78 mm x 43 mm) |
| Sensor Dimension | φ1.57 in x 1.37 in (φ40 mm x 35 mm) |
| Weight | 0.77 lb (350 g) Battery, probe included |
| Operating Environment | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
