Overview

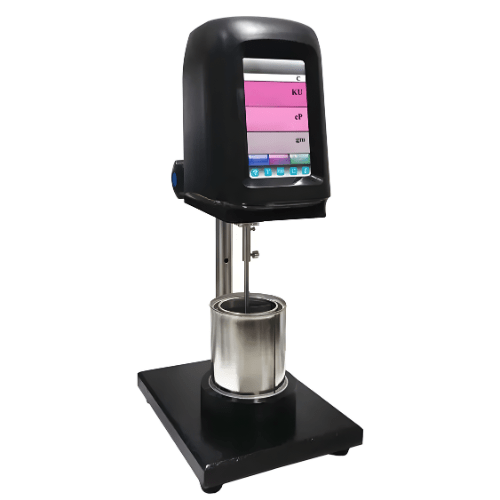

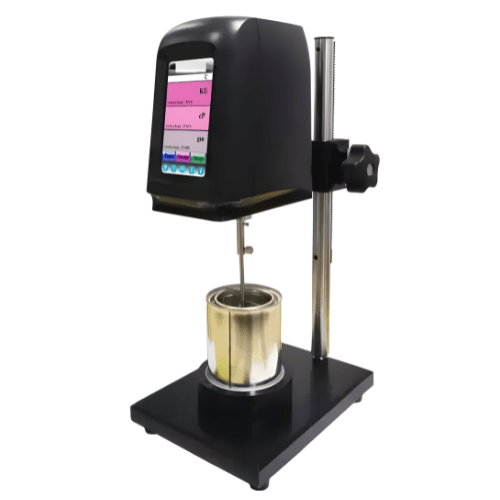

Enviro Testers Viscometer Digital Paints Viscometer is a kind of touch screen viscometer with ARM chip processor and high-subdivision step motor. Viscometer is used for paints, coatings, pastes measurement. It measures fluid viscosity in Krebs units. A KU-10 spindle is driven at 200 rpm by a high-subdivision step motor, and the torque will be converted to viscosity in Krebs units, centipoise and grams value. The values will be displayed on the screen.
Features
- 5 inch screen with rich information
- Anti static shell and PC lifter
- Equip with a RTD temp probe
- ARM chip processor for higher data processing speed
- Cover the specifications from STM 1 to STM 4
- Manual up and down lift
- Step motor control for more accurate rotate speed
- Hold reading value displayed on the screen
- Continuous viscosity value displayed
- 1 Equip with a printer interface
- 1 Linear calibration by computers
- 1 Power supply：100 V to 240 V
Technical Specifications
| Range (mPa.s） | 32 gm to 1099 gm |
| Rotate speed（rpm） | 200 RPM |
| Spindle | KU to 10 paddle spindle |
| Accuracy | ± 1.0% (of full range) |
| Repeatability | 0.5% |

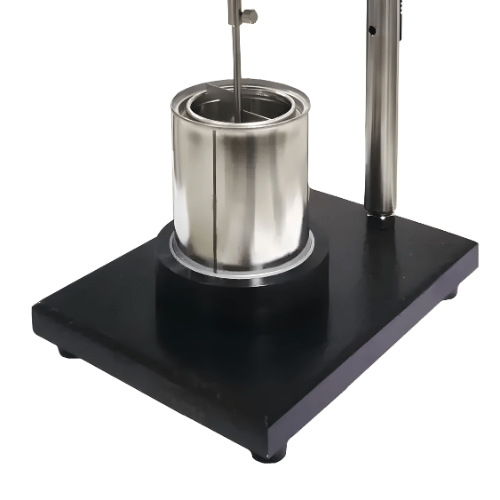

| Measuring Container | 1 pint 1/2 pint |
| Power Supply | 100 V to 240 V good anti interference |
| Interface | Equip with a printer interface |
| Customized Support | OEM |
