Overview

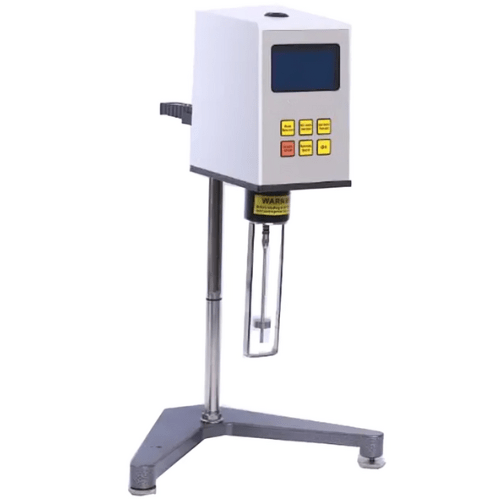

Enviro Testers Viscosity Testing Meter is a new upgrading product of our rotational viscometer. The adoption of advanced mechanical design technology, manufacturing process, microcomputer control technology guarantees accurate data collection. Ultra-bright LCD display with blue backlight guarantees clear data display. With the microcomputer technology, it is easier to set measuring span (rotor number and rotating speed), take digital process of the data measured by sensor, and clearly display rotor number, rotating speed, viscosity value of the tested liquid and its full-scale percentage on the screen. Besides, its automatic switch is set for free selection of proper rotating speed or rotor number.
Technical Specifications
| Measurement Range | 1 to 2 × 106 mpa.s |
| Rotor Specification | 1,2, 3, 4# |
| Speed | 0.3 / 0.6 / 0.5 / 3 / 6 / 12 / 30 / 60 rpm |
| Measurement Tolerance | ± 2% (Newtonian liquid) |
| Power | AC 220 V ± 10%
50 Hz ± 10% |
| Temperature | 41 °F to 95 °F (5 ℃ to 35 ℃) |
| Working Condition | Relative humidity no more than 80% |
| Dimension | 14.56 in x 12.79 in x 11.02 in (370 mm × 325 mm × 280 mm) |
| Weight | 14.99 lb. (6.8 kg) |
