Overview

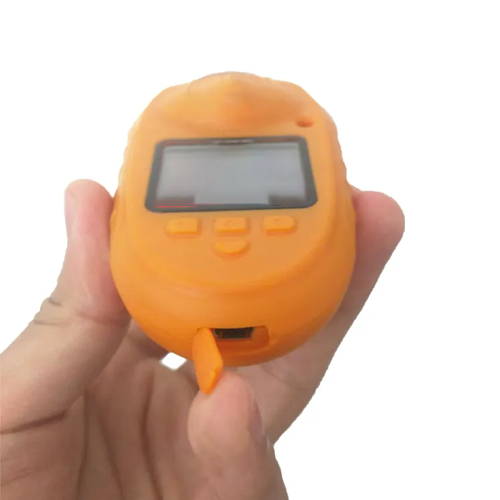

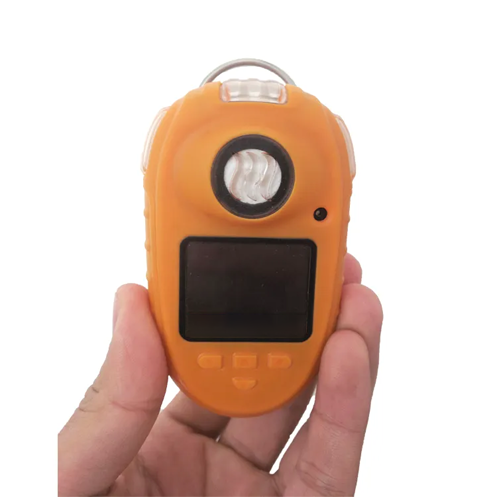

Enviro Testers Volatile Organic Compound (VOC) Gas Detector can continuously detect the concentration of combustible, toxic, and natural gas. Each device detects one kind of gas. PG610 is designed for safe technical personnel and equipment maintenance personnel to guarantee the staff’s safety. Widely used in the oil and chemical industry, metallurgy, power stations, and underground pipelines. It detects gas concentration in a diffusion way and also can use an external suction pump to sample gas. This gas detector adopts an imported electrochemical sensor (catalytic combustion sensor for combustible gas detectors). It has excellent sensitivity and good repeatability. It is easy to take, waterproof, dustproof, and explosion-proof.
Features
- Big OLED display, high brightness, high-definition
- Automatically saves detection data for 5000 records
- In bar display mode, display the concentration of the gases
- Low power consumption, save energy, save electricity
- Real-time clock display function
- Key operation needs to input a password to prevent the wrong operation
- Automatic calibration functions prevent measuring errors.
- Recover function, prevent the loss of data
- Battery power real-time display, under-voltage hint
- Standard mini-USB charging
- Alarm type: audible and visual alarm, vibration alarm
- STEL and TWA alarm functions for toxic gases
- Power on self-test function
- adjustable high and low alarm levels
Technical Specifications
| Detecting Gas | VOC |
| Measuring Range | 0 ppm to 1000 ppm |
| Sampling Method | diffused or pump suction (external electric sampling pump) |
| Deviation | ≤±3 % F. S |
| Respond Time | T90 < 30 s |
| Working Temperature | toxic gas: -4 °F to 122 °F (-20 °C to +50 °C) Combustible gas: -40 °F to 158 °F (-40 °C to +70 °C) |
| Working Humidity | < 95 % R.H. no condensation |
| Sensor life | 2 to 3 years |
| Display Mode | OLED screen shows density, time, battery power, Alarm state, percentage progress bar |
| Data Storage | 5000 records |
| Upload Data | connected to computer via data line (optional) |
| Alarm Type | Light: wide-angle light emitting diode Sound: 90 dB humming; when concentration increases, frequency increases, Vibration: oscillator speed of 1300 r/min |
| Working Voltage | DC 3.6 V lithium-ion battery, 1000 mAh |
| Charging Time | 4 h to 6 h |
| Working Time | combustible gas more than 8 hours (continuous); Toxic gas more than 72 hours (continuous) |
| Protection Class | IP 66 |
| Weight | 0.30 lb (140 g) |
| Appearance Size | 3.85 in x 2.36 in x 0.94 in (98 mm × 60 mm × 24 mm) |
