Overview

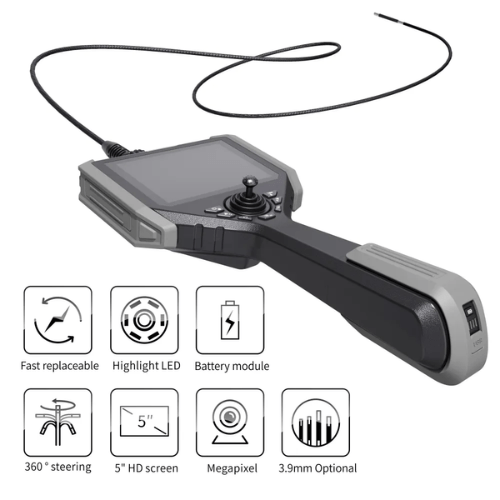

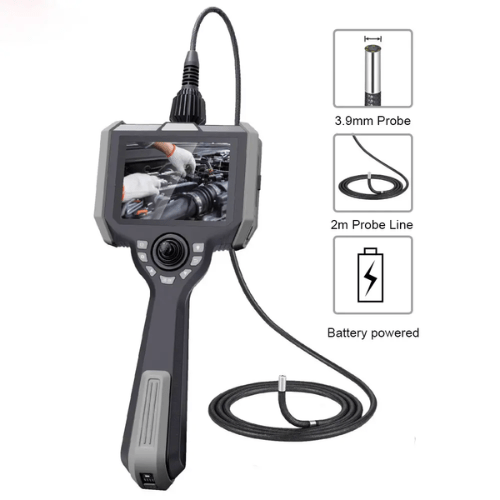

Enviro Testers VSNDT MTIE-104 industrial rescope is a high-definition industrial video borescope product. Without dismantling and destroying the inside of components, the endoscope can perform non-destructive testing on areas that cannot be seen by the human eye, clearly show the internal situation, and quickly detect many defects, such as pores, lack of material, veins, and defects in the processing process. Burrs, cleanliness during clearing, etc.
Features
- 5-inch industrial touch LCD screen
- 6mm megapixel micro camera probe
- 6 LED Lights with Adjustable Brightness
- Bidirectional 360 ° steering lens
- Dedicated rechargeable lithium battery pack
- IP67 Waterproof and oil proof
Technical Specifications
| Host Size | 13.780inch ×6.102inch ×2.323inch (350mm *155mm *59mm) |
| Display | 5-inch industrial touch LCD screen |
| Storage | 32G |
| Output Port | HDMI video output, Micro USB, TF card slot |
| Image/Video Format | Picture/video format: JPEG (JPG)/AVI |
| Support Function | With freeze, zoom, photo, flip, video playback, analog ruler functions |
| Support Language | Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese |
| Power | Special rechargeable lithium battery pack, online charging, battery life >4 hours |
| Bending Angle | 150°±10° |
| Pixels | 1000,000pixels |
| Insertion Tube Length | 154inch (2.0m) |
| Lens Size | 0.153in(3.9mm) |
| Field Angle | 90ºto 120º to 140º |
| Depth Of Field Range | 0.197inch to  4.724inch (5mm to 100mm to 10mm to 120mm) |
| Guide | 360 ° arbitrary guidance |
| System Operating Temperature | 14 to 122 (-10℃ to 50℃) |
| Storage Temperature | -4(-20℃ to 60℃) |
| Relative Humidity | Maximum 90%, no condensing |
| Degree Of Protection | Insertion tube (IP67) |
| Lens Illumination | LED Integrated lighting |
| Insert Tube Materials | Flexible (tungsten braided tube) |
| Packing Case Weight | 9.0kg |
