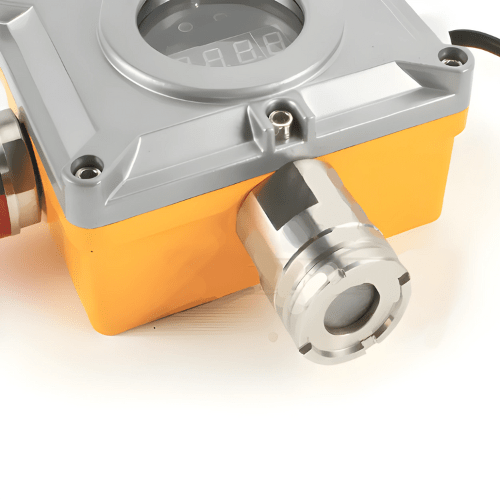

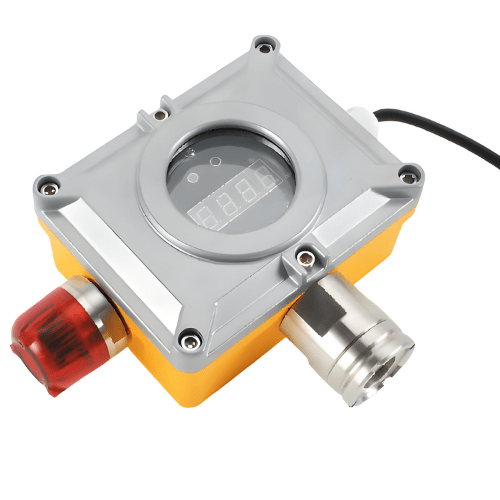

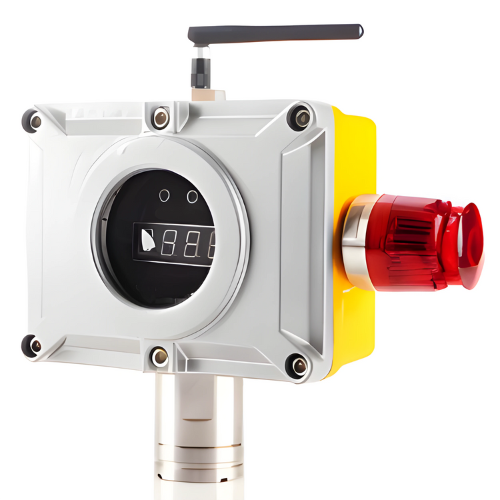

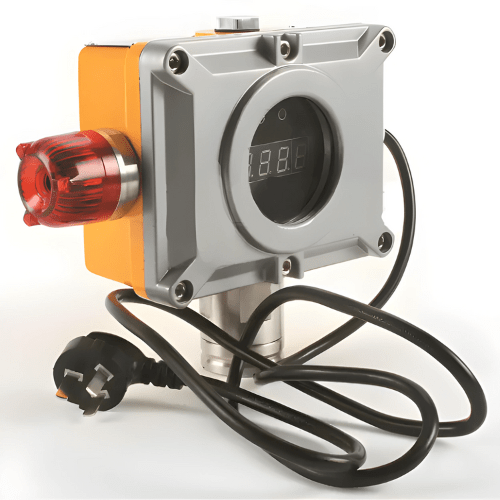

Enviro Testers Wall-Mounted Ammonia Gas Detector

This Wall-Mounted Ammonia Gas Detector has power supply 24 VDC, low or high alarm of 25 ppm or 50 ppm, and explosion-proof grade of Exibd II CT6.

SKU: ETERAGD-230 Category: Ammonia Gas Monitors

Features

Technical Specifications

Power Supply	24 V DC or AC 220 V or 50 Hz
Output Signal	4 mA to 20 mA standard industrial signal output
Display	Backlight LED
Backlight LED Display	4-digit gas reading
Relative Humidity	15 % to 90 % RH (non-condensing)
Atmospheric Pressure	86 Kpa to 106 Kpa
Explosion-Proof Grade	Exibd II CT6
Distance	0.62 mi (1000 m)
Detection Gas	NH3
Range	0 ppm to 100 ppm
Accuracy	±5 % (F.S)
90% Response Time	≤ 50 s
Min Readout	1 ppm
Low Or High Alarm	25 ppm or 50 ppm
Operating Temperature	-4 °F to 122 °F (-20 °C to +50 °C)
Weight	6.61 Ib (3 kg)
Size	6.3 in x 4.96 in x 3.07 in (160 mm x 126 mm x 78 mm)
