Overview

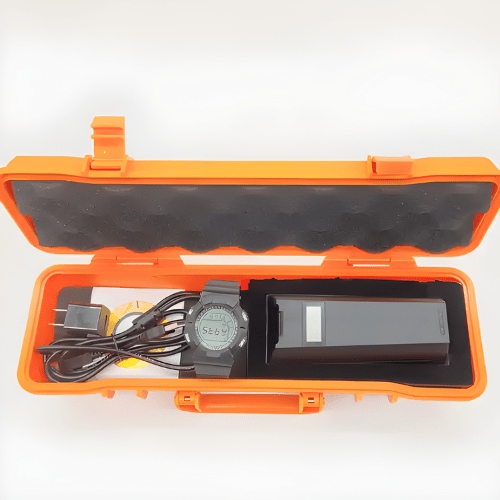

Enviro Testers watch-type personal dosimeter portable radiation dosimeter has a monitoring by X and gamma radiation. It caused by individual cumulative dose and dose equivalent rate, could stay wrist like a watch, is more suitable for interventional radiology treatment doses of radiation measurement and alarm, can display real-time data and alarm indication is given, and a data storage, alarm parameters setting, battery voltage detection, wireless charging and wireless data communications, and other functions. Alarm indication is given by Acousto-optic instructions. Its features are compact structure, waterproof and dustproof and can be systematically managed.
Technical Specifications
| Measurement Scope | Cumulative dose Hp (10): 0.0 mSv to 10 Sv; Dose rate Hp (10): 1 mSv/h to 500 mSv/h |
| Alarm Threshold | Cumulative dose: 1 mSv to10 Sv (Adjustable); Dose rate: 1 mSv/h to 500 mSv/h (Adjustable); Alarm time: Adjustable between 99 hours and 59 minutes |
| Alarm Method | Sound and light alarm; LCD display indicator |
| Alarm Type | Cumulative dose or dose rate exceeding threshold, battery under voltage, working overtime, detector failure, etc. Settable cumulative dose increment flash prompt |
| LCD Display Range | Hp (10): 0.00 mSv to 9999 mSv; Hp (10): |
| Energy Response | <±30% (50 keV to 1.5 MeV) |
| Response Linearity | <±20% (10m Sv/h to 500m Sv/h) |
| Overload Characteristics | <±10% (1mSv/h, Cs 137) |
| Relative Inherent Error | >10 Sv/h |

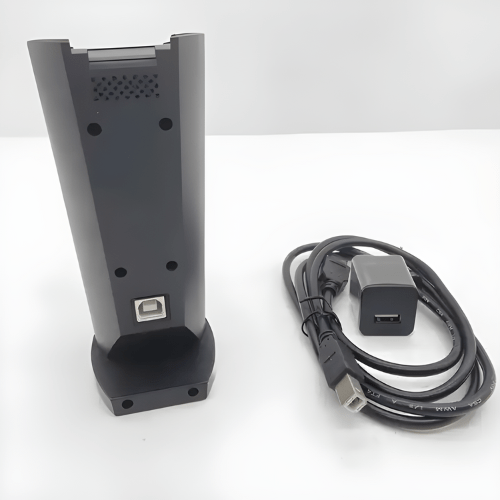

| Power Source | Wireless charging mode; Built-in rechargeable lithium battery (4.2 V, 100 mAh); Continuous working time is more than 10 days. Additional charging and wireless communication seat. |
| Temperature Characteristics | <±15% 14 °F to 104 °F (-10 ℃ to+40 ℃) |
| Humidity Characteristics | <±10% (40% to 90%RH,95 °F (35 ℃)) |
| Data Storage | When the instrument is turned off, the measurement data will be stored without power loss |
| Data communication | Data storage is transmitted to the computer wirelessly for system management |
| Dimensions | 1.9291in×0.6299 in (49mm×16mm) (not including wristband) |
| Weight | 0.099 lb (0.045 kg) |
