Overview

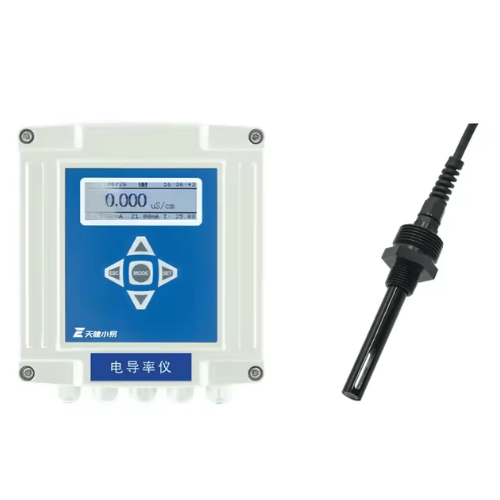

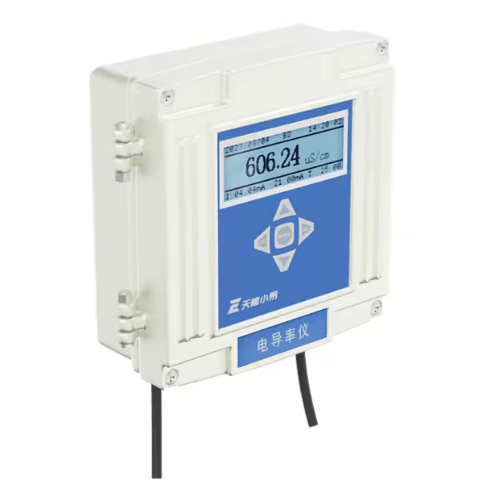

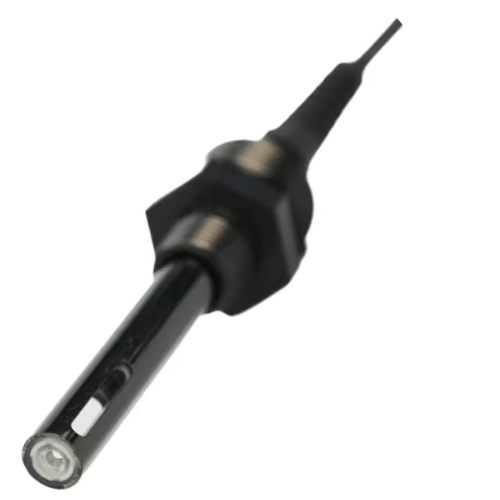

Enviro Testers water conductivity sensor is a quadrupole measuring electrode, a variety of range selection. Widely used in pure water, surface water, circulating water, water reuse and other systems as well as electronic, electroplating, chemical, food, pharmaceutical and other process fields. Excellent performance in sewage treatment, drinking water treatment, surface water monitoring, pollution source monitoring and other applications.
Features
- Easy to use
- Stable measurement
- Fully functional
- Data assurance
Technical Specifications
| Range | Conductivity: 0 ms per cm to 200 ms per cm TDS: 0 mg per l to 9999 mg per l Salinity: 0 % to 200 % |
| Resolution | Conductivity: 0.01μS per cm or 0.1μS per cm or 1μS per cm TDS: 0.01mg per l Salinity: 0.01% |
| Precision | Conductivity: 1 % TDS: 1 % Salinity: 2 % |
| Calibration | Electrode coefficient correction, adjust the coefficient according to the comparison measurement |
| Display | LCD display rates, time, measurements, historical trends lines, etc |
| Data Storage | Automatic memory function, power failure data protection, can store query historical data |
| Analog Output | 2 isolation 4mA to 20mA, output program corresponding to conductivity, TDS, temperature measurement |
| Relay Output | 3 relays can be configured for high alarm, low alarm or timing function |
| AC Powered | 85 vacs to 265 vac, 50Hz or 60Hz |
| DC Powered | 24vdc 10 % |
| Degree Of Protection | Transmitter: IP65 Sensor: IP68 |
| Work Pressure | Up to 4 bars |
| Relative Humidity | 0% rh to 95 %rh, non condensing |
| Temperature Compensation | PT1000 automatic temperature compensation, temperature compensation can be manually set |
| Operating Temperature | Transmitter: 68°F to 140°F (20°C to 60°C) Sensor: 32 °F to 160 °F (0 °C to 60 °C) |
| Temperature Resolution | 0.01°F (0.01°C) |
| Temperature Precision | 0.2°F (0.2°C) |
| Temperature Range | 32°F to 176 °F (0℃ to 80℃) |
| Sensor Size | 0.55 in x 4.88 in (14 mm x 124 mm) |
| Transmitter Size | 6.69 in x 7.16 in x 2.95 in (170 mm x 182 mm x 75 mm) |
