Overview

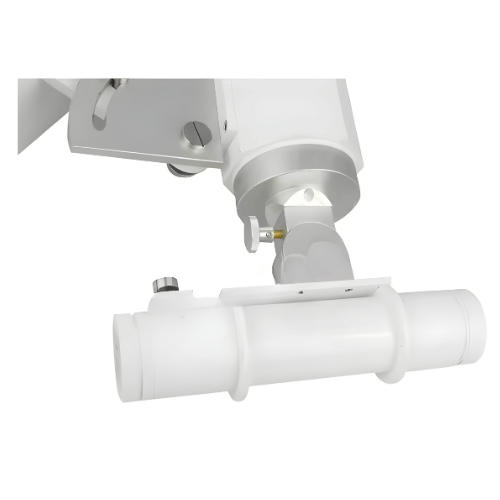

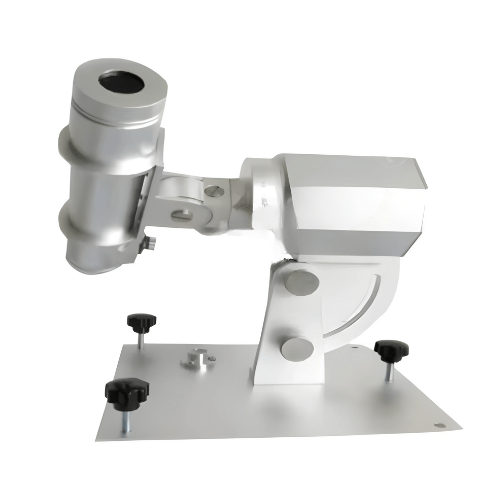

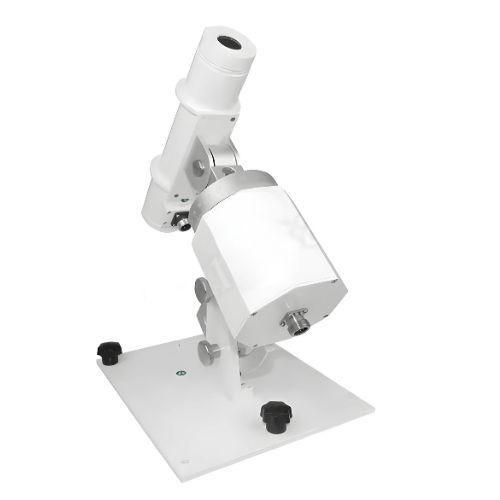

Enviro Testers weather station radiation meter is used to measure the radiation perpendicular to the sun’s surface and the diffuse radiation around the sun. It has the function of automatically tracking the sun and monitoring the direct radiation of the sun.
Technical Specifications
| Measurement Range | 0 W/m2 to 2000 W/m2 |
| Wavelength Range | 300 nm to 3000 nm |
| Sensitivity | 7μV/W•m-2 to 14 μV/W•m-2 |
| The Power Supply Mode | DC 5 V DC 12 V DC 24 V Others |
| Signal Output Mode | Voltage: 0 V to 2.5 V 0 V to 5V Current: 4 mA to 20 mA Others |
| Length | Stand: 2.5 Meters Others |
| Resistance | About 100 Ω |
| Tracking Accuracy | ±1º less than 24 hours |
| Annual Stability | ±1% |
| Non-Linear | ≤2% |
| Open Angle | 4º |
| Response Time | ≤25 S (99%) |
| Work Environment | Temperature -58 ℉ to 122 ℉ (-50 ℃ to 50 ℃) |
| Power Consumption | 100 mW |
| The Product Weight | 9.26 lb (4.2kg) |
