Overview

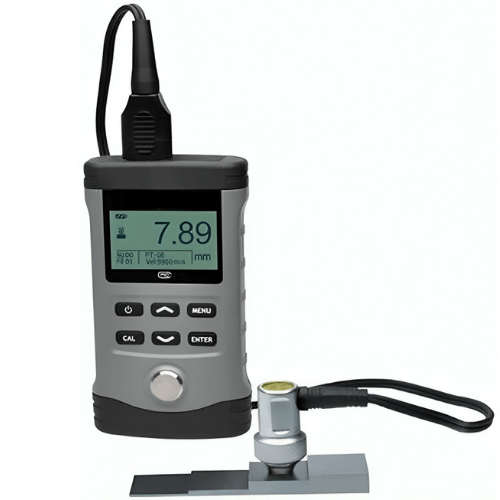

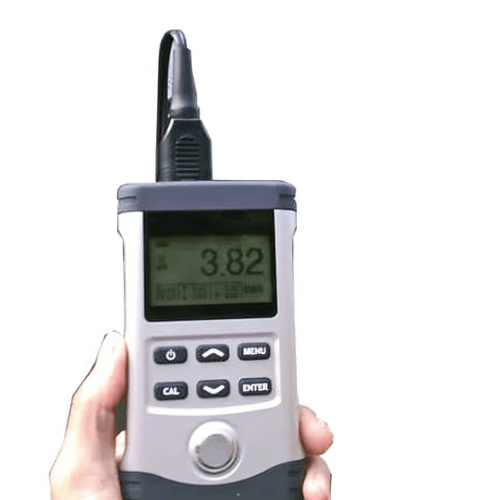

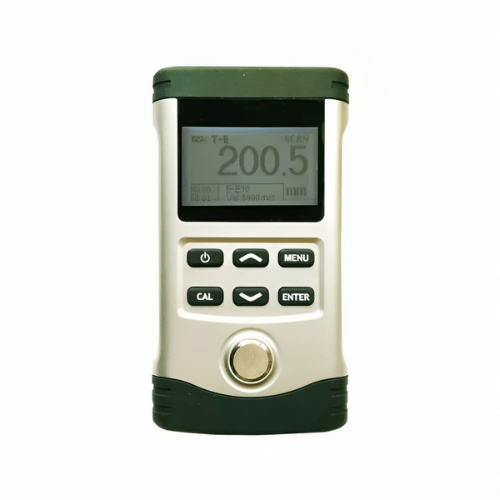

Enviro Testers Wired Coating And Material Thickness Gauge offers a cost-effective solution for measuring material thickness. With a measuring range of 0.3 in to 0.78 in (0.8 mm to 20mm) , this echo ultrasonic gauge provides accuracy and efficiency, making it ideal for various applications.
Features
- Energy-saving
- Waterproof Keyboard
- Simple using
- Normal Mode: Used for measuring of material thickness
- Coating Thickness Mode : Used as a coating thickness gauge for measuring the coating thickness
- Auto adjustment for the measuring accuracy
- Auto recognition for different types of probes
Technical Specifications
| Measurement Range | Launch-Echo Mode: 0.03 in to 19.69 in (according to the specific probe); Echo-Echo Mode: 0.12 in to 0.79 in (E-E10 probe) |
| Sound Speed Range | 3280.84 ft/s to 32808.4 ft/s (1000 m/s to 10000 m/s) |
| Display Digits | Four Digits |
| Indication Accuracy | 0.01 in (measurement greater than 3.94 in); 0.01 in (measurement less than 3.94 in) |
| Measurement Error | H<0.39 in, ±0.01 in; H≥0.39 in, ±(0.0004 + H/200)in (H is the measured thickness value) |
| Use Environment | Temperature: 14 °F to 140 °F (-10 °C to 60 °C) Relative Humidity Less Than 90% |
| Measurement Method | Manual Storage Measurement |
| Power Supply | Two AA Batteries |
| Storage Capacity | Divided into 6 groups, each group has 100 measurement points, a total of 600 measurement points |
| Dimensions | 5.75 in x 3.19 in x 1.18 in (146.05 mm x 81.02 mm x 29.9 mm) |
| Weight | 0.66 lb. (299.94 g) |
