Features

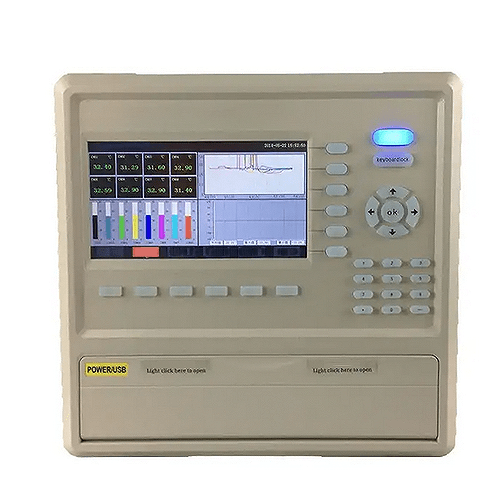

- 7 inch TFT LCD high-brightness, clear picture, wide viewing angles.
- Four-wire resistive touch screen (4096 X 4096)
- Powerful image display and data processing function.
- Hidden embedded portable shape brings more convenience.
- Support USB interface and large capacity. Effective support of long-term information collection.
- Powerful PC analysis software.
- Data acquisition, monitoring, recording and controlling
Technical Specifications
| AC/DC Power | 85 VAV to 265 VA, 24 VDC ±10 % |
| Power Waste | ≤ 25 VA (The instrument input channel number affects actual power waste) |
| Channel Number | 1 to 64 |
| Voltage | 0 V to 5 V, 0 to 10 V, 1 to 5 V |
| Measurement accuracy | ≤ ±0.2% F.S |
| Recording rates | 1 s to 19999 s |
| Operating temperature | 32 ℉ to 122 ℉ (0 ℃ to 50 ℃) |
| Operating humidity | < 85 % R.H |
| Storage temperature | -4 ℉ to 158 ℉ (-20 ℃ to 70 ℃) |
| Storage humidity | < 95 % R.H |
| Materials | ABS |
| Dimensions | 11.34 in × 11.34 in × 7.87 in (28.8 cm x 28.8 cm x 20 cm) |
| Weight | 133.87 oz (3.8 KG) |
