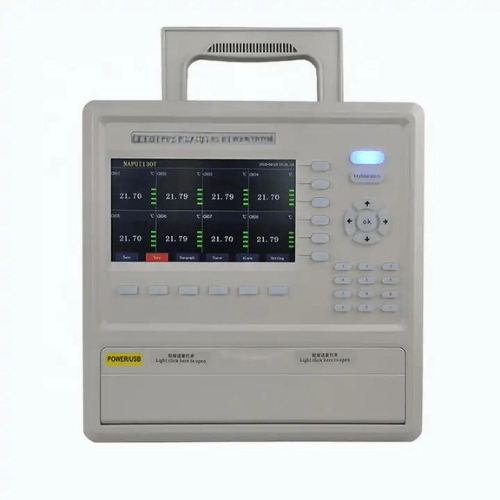

Features
- 2 in (259.08 mm) (1024 Pixel x 600 Pixel) TFT LCD high brightness
- Clear picture, wide viewing angles
- Four wire resistive touch screen (4096 Pixel x 4096 Pixel), and it provides swipe, pinch in or out
- Click and drag controls for fast navigation of common display mode functions
- Powerful image display and data processing function
- Hidden embedded portable shape brings more convenience
- Support USB interface and large capacity. Effective support long-term information collection
- Powerful PC analysis software
- Data acquisition, monitoring, recording, and controlling (including voltage, current, temperature
- Humidity, pressure, vibration, frequency, flow, liquid level, etc).
Technical Specifications
| AC or DC Power | 85 V AC to 265 V AC or 24 V DC ±10% |
| Power Waste | ≤25 V A (The instrument input channel number affects actual power waste) |
| Channel Number | 1 to 64 |
| Input Signals | Hot resistance Pt100, Cu50, Current 4 mA to 20 mA, 0 mA to 10 mA, 0 mA to 20 mA, Voltage 0 V to 5 V, 0 V to 10 V, 1 V to 5 V |
| Measurement Accuracy | ≤±0.2% FS |
| Recording Rates | 1 s to 19999 s |
| Recording Capacity (Reference 68 M) | 6 Days (64 channels, inter-record gap 1 s) to 36 Days (64 channels, inter-record gap 1 m) |
| Recording Model | Loop record |
| Alarm Type | Free to set upper and lower limits for each channel alarm, 4 alarms each channel |
| Relay | TP1718 |
| Distribution | 24 V DC each channel |
| Communications | Standard RS 232C (or RS 484, USB, Ethernet, GPRS wireless communications, etc.) |
| Communication Protocol | Standard Modbus RTU |
| Operating Humidity | <85% RH |
| Storage Humidity | <95% RH |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Panel Cutout | 278 mm x 278 mm (10.94 in x 10.94 in) |
| Dimensions | 288 mm x 288 mm x 200 mm (11.34 in x 11.34 in x 7.87 in) |
| Weight | 8.38 lb (3.8 kg) |
