Overview

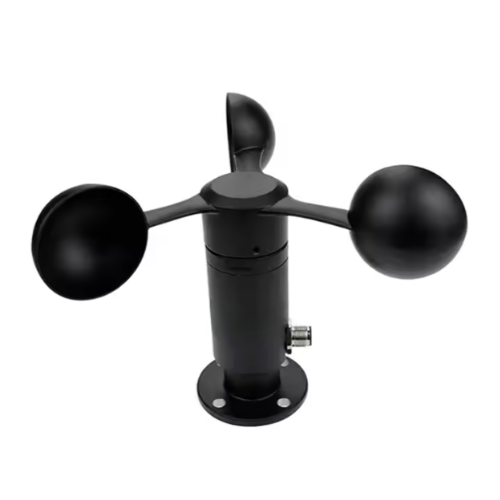

The Firstrate FST200-201 Wind Speed Sensor is a high-precision industrial device designed to measure wind speeds from 0.5 to 50 m/s with ±0.5 m/s accuracy. Built for harsh environments, it operates in temperatures from -20°C to +85°C and offers IP65-rated dust and water resistance. Featuring multiple output options—Pulse, 0–5 VDC, and 4–20 mA—it supports versatile integration with various systems. Compatible with multiple supply voltages (5 VDC, 24 VDC, and 12–36 VDC), it comes with a rugged M12 electrical connection for reliability. CE and RoHS certified, it is ideal for industrial applications, with OEM and ODM customization available for specialized needs.
Features
- Measures wind speed from 0.5–50 m/s with ±0.5 m/s accuracy.
- Wide operating temperature range: -20°C to +85°C.
- IP65-rated for dust and water resistance.
- Multiple outputs: Pulse, 0–5 VDC, 4–20 mA.
- Compatible with 5 VDC, 24 VDC, and 12–36 VDC supply.
- OEM and ODM customization available.
- Rugged M12 electrical connection for industrial use.
Technical Specifications
| Parameter | Specification |
| Type | Wind Speed Sensor |
| Operating Temperature | -20°C ~ +85°C |
| Protection Grade | IP65 |
| Operating Humidity | ≤95% RH |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Model Number | FST200-201 |
| Certificate | CE, RoHS |
| Output | Pulse Signal (Hz), 0–5 VDC, 4–20 mA |
| Measuring Range | 0.5 m/s ~ 50 m/s |
| Accuracy | ±0.5 m/s (<5 m/s) |
| Supply Voltage | 5 VDC, 24 VDC, 12–36 VDC (common 24 VDC) |
| Usage | Industry |
| Color | Black |
| Electrical Connection | M12 |
| Environmental Protection | IP65 |
