Overview

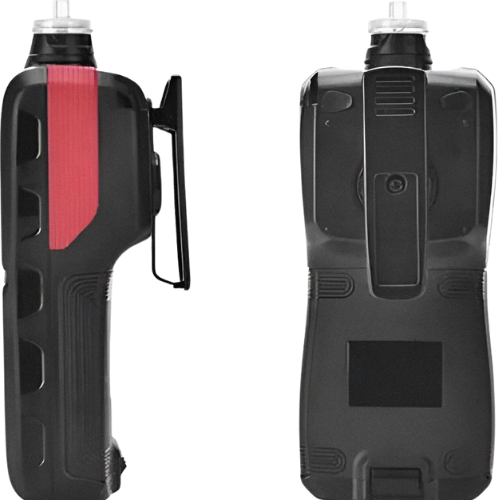

The Handheld 6-in-1 gas analyzer from Enviro Testers is a robust, portable gas detection unit capable of analyzing up to six gases simultaneously. Engineered with an integrated sampling pump and sound alarm, it’s designed for use in varied industrial and environmental testing settings. OEM customization—including logo, packaging, and graphics—is supported to suit diverse branding and deployment needs.
Features
- Detects multiple gases (up to six simultaneously)
- Built-in sampling pump for responsive suction sampling
- Audible sound alarm for immediate alerts
- Sturdy ABS plastic housing
- Comes with external mini wireless infrared printer
- Fully OEM-customizable (logo, packaging, graphics)
Technical Specifications
| Detected Gases | Compound Gases (Default: CO, H₂S, O₂, Ex, CO₂) |
| Detection Range | CO: 0–1000 ppm H₂S: 0–100 ppm O₂: 0–30% Vol Ex: 0–100% LEL CO₂: 0–5000 ppm |
| Resolution | CO: 0.1 ppm H₂S: 0.01 ppm O₂: 0.01% Vol Ex: 0.1% LEL CO₂: 1 ppm |
| Detection Principle | Electrochemical, Catalytic Combustion, Infrared, Thermal Conductivity, Semiconductor, PID |
| Test Method | Built-in Pumping Type, Flow Rate: 500 mL/min |
| Display | 2.5-inch HD Color LCD Screen, 320×240 Resolution, 8-Key Operation |
| Detection Accuracy | ≤ ±2% F.S. |
| Linearity | ≤ ±2% |
| Repeatability | ≤ ±2% |
| Alarm Modes | Sound, Light, Vibration, Visual, Configurable (Any Combination) |
| Response Time (T90) | ≤ 20 seconds |
| Recovery Time | ≤ 30 seconds |
| Power Supply | DC 3.6V |
| Battery | 3.6V, 5500 mAh Rechargeable Polymer Battery (Protection: Overcharge, Overheat, Short-circuit, etc.) |
| Sensor Life | EC: 2–3 years O₂: 2 or 6 years IR: 5–10 years Catalytic: 3 years TC: 5 years |
| Operating Conditions | Humidity: -40°C to +70°C (-40°F to 158°F) RH: 0%–99% RH (Non-condensing) |
| Sample Gas Temp Handling | -40°C to +70°C (-40°F to 158°F) Up to 800°C (with high-temp cooling filter or pretreatment system) |
| Temperature Measurement | Optional: -40°C to 120°C (-40°F to 248°F), Accuracy: ±0.5°C (±0.9°F) |
| Humidity Measurement | Optional: 0%–100% RH, Accuracy: ±3% RH |
| Data Storage | 100,000 records (standard), customizable size, data export via PC software (storage off by default) |
| Communication Interface | USB (charging & communication), RS232, Infrared (auto sensor recognition) |
| Printer Support | Optional external micro wireless infrared thermal printer |
| Interface Language | Chinese / English Configurable |
| Explosion-Proof Type | Intrinsically Safe – Exia II CT6 |
| Protection Rating | IP67 – Rainproof, Dustproof, Short-term Soaking Protection |
| Dimensions | 180 × 78 × 33 mm (7.09 × 3.07 × 1.30 in) |
| Weight | 350 g (0.77 lb) |
