Overview

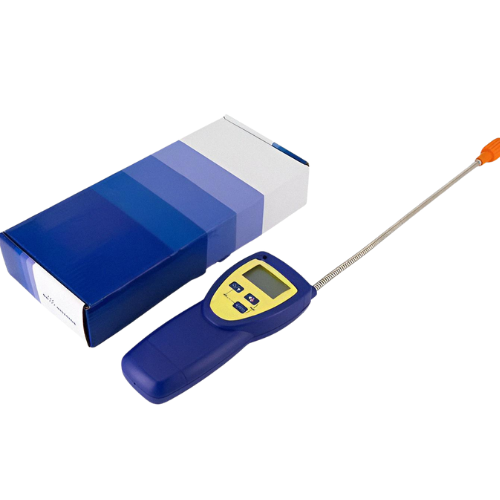

It is a rugged, industrial-grade handheld gas leak detector purpose-built for pinpointing leaks of combustible gases including methane (CH₄), propane (LPG, C₃H₈), and hydrogen (H₂). It features a flexible gooseneck probe for reaching constrained areas, dual display options (LED or LCD), and quick response time—under 5 seconds—making it ideal for field inspections and maintenance tasks.
Features
- Rapid detection with response time < 5 seconds.
- Flexible gooseneck for accessing tight spaces.
- LED or LCD display options
- Low battery warning, sensor fault alerts, and automatic zero calibration.
- OEM customization support available.
Technical Specifications
| Detection Gases | CH₄ (0–30,000 ppm), C₃H₈ (0–20,000 ppm), H₂ (0–10,000 ppm) |
| Sensor Type | Semiconductor sensor |
| Sensor Life | ~2 years |
| Sensitivity | Better than 50 ppm |
| Sampling Method | Natural diffusion |
| Response Time | T₉₀ < 5 s |
| Housing | Rubberized enclosure |
| Battery | Rechargeable 3.7 V Li-ion (around 2200–2500 mAh) |
| Working Time | ≥ 8 hours continuous |
| Working Temperature | −10 ℃ to 55 ℃ |
| Humidity | < 93% RH (non-condensing) |
| Display Options | LED or LCD |
| Dimensions | ~180 × 72 × 35.5 mm |
| Weight | ~300 g |
