Overview

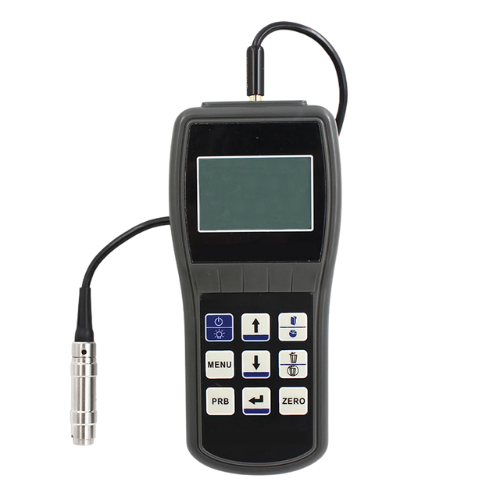

Enviro Testers – High Precision Industrial Coating Thickness Measuring Gauge is designed for accurate and reliable measurement of coating thickness on various metal surfaces. This device operates using magnetic induction or eddy current principles, making it suitable for both ferrous and non-ferrous materials. It ensures precise readings with a measurement error of just 3%H+1μm and supports single or continuous measuring modes. With features like one-point calibration and electronic operation, this product is ideal for industrial applications requiring consistent and high-accuracy results. It also comes with a 1-year warranty and offers OEM, ODM, and OBM customization options.
Features
- Measures coating thickness on both ferrous and non-ferrous materials
- Uses magnetic induction and eddy current measuring principles
- High accuracy with a measurement error of 3%H + 1μm
- Supports single and continuous measuring modes
- One-point calibration for quick and easy setup
- Wide measuring range (0–250 μm for F; 0–1500 μm for N)
- Compact, portable, and user-friendly design
- Electronic power operation for stable performance
Technical Specifications
| Specification | Details |
| Probe Type | F or N |
| Measuring Principles | Magnetic Induction or Eddy Current |
| Measuring Range | 0 to 250 µm (F); 0 to 1500 µm, Chromium plating on copper (0 to 40 µm) (N) |
| Measurement Error | 3%H + 1 µm (H is the measuring range) |
| Measuring Mode | Single or Continuous |
| Calibration Mode | One-point Calibration |
| Indication Error | ±[(1 to 3)%H + 1] |
| Power Supply | 3 x 1.5V AAA Batteries |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Weight | 8.11 oz (230 g) |
| Dimensions | 6.10 in x 2.68 in x 1.06 in (155 mm x 68 mm x 27 mm) |
