Overview

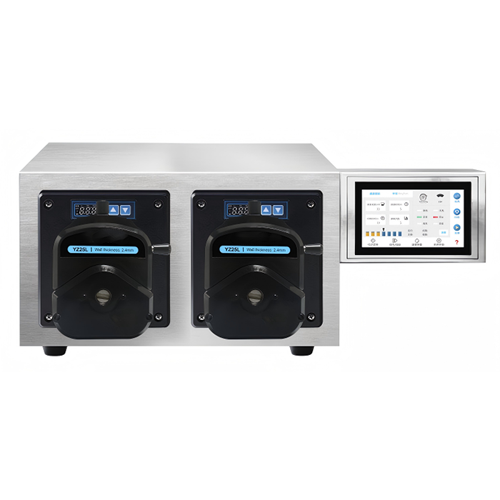

The high-quality peristaltic pump is designed for precise, non-polluting liquid transfer in laboratories. It features a 4.3-inch LCD touch screen with intelligent filling control and calibration. Available in 2-channel and 4-channel models, it supports flow rates up to 6000 ml/min. Compact, reliable, and accurate up to ±0.5%, it ensures efficiency in lab research applications.
Features
- High-quality peristaltic pump designed for laboratory applications
- 4.3-inch industrial-grade true color LCD touch screen control
- Intelligent filling system with 16 filling units and calibration function
- ±0.5% filling accuracy for high-precision liquid handling
- Wide flow rate range: 0.007 to 6000 ml/min depending on model
- Supports 2-channel and 4-channel configurations for flexibility
- Preset functions: filling volume, time, interval, cycles, and suction angle
- Online fine-tuning and animation display of working status
- Remote control compatibility via foot switch or switching signals
- Compact, durable design with wide voltage support
Technical Specifications
| Channels | 2-channel / 4-channel options |
| Control System | 4.3-inch true color LCD touch screen |
| Filling Units | 16 filling units |
| Filling Accuracy | ±0.5% |
| Rotation Speed Range | 0.1 ~ 600 rpm/min |
| Flow Rate Range | 0.007 ~ 2280 ml/min (BT600FC-S/YZ2515*2) 0.015 ~ 6000 ml/min (UTF02 models) |
| Preset Functions | Volume, time, interval, suction angle |
| Calibration | Intelligent calibration with online fine-tuning |
| Remote Control | Foot switch or switching signal input |
| Minimum Order Quantity | 1 |
| Quality | High Quality |
| Application | Laboratory Research |
