Overview

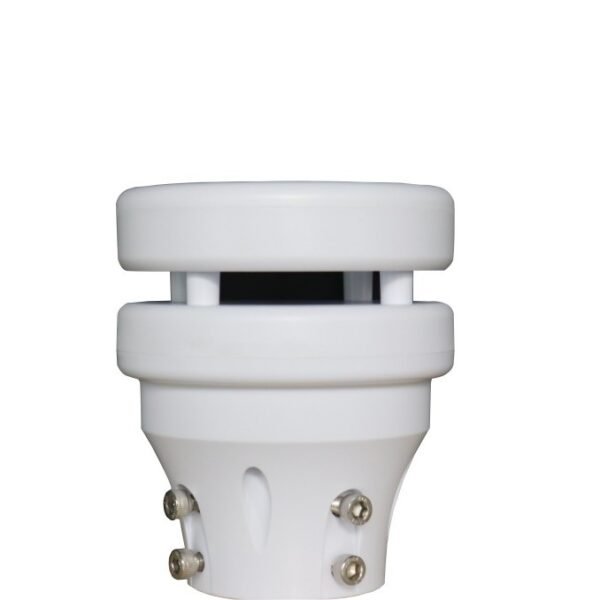

The XinFeng Temperature & Wind Controller is a robust environmental monitoring solution designed for precise and reliable measurements in demanding conditions. Built with an IP65-rated enclosure, it withstands harsh weather, making it ideal for outdoor installations. This system offers wind speed measurement from 0 to 40 m/s, accurate wind direction tracking from 0° to 359.9°, and rainfall monitoring including duration, intensity, and maximum intensity. The device supports a wide operating temperature range from -30℃ to 70℃, ensuring consistent performance in extreme climates. With OEM, ODM, and OBM customization options, it can be tailored to various industrial, agricultural, and meteorological applications. The XF200L is powered by DC 9–24V and comes with a standard 3-meter cable, with an optional 10-meter upgrade. Optional fixed trestles (1.5m or 1.8m) are available for easy installation. Backed by a 3-year warranty, the XinFeng XF200L delivers durability, accuracy, and flexibility for professional environmental monitoring needs.
Features
- IP65-rated weatherproof design for outdoor use
- Measures wind speed from 0–40 m/s
- Accurate wind direction from 0° to 359.9°
- Rainfall monitoring: duration, intensity, and max intensity
- Wide operating temperature range: -30℃ to 70℃
- Supports OEM, ODM, and OBM customization
- DC 9–24V power supply for flexible installation
- Comes with a standard 3-meter cable (optional 10m)
- Optional fixed trestles: 1.5m or 1.8m for mounting
- Backed by a 3-year manufacturer warranty
Technical Specifications
| Type | Temperature Controller |
| Warranty | 3 Years |
| Customized Support | OEM, ODM, OBM |
| Infrared Resolution | Other |
| Wind Speed (Range) | 0–40 m/s |
| Wind Speed (Accuracy) | Passive Mode: 1/S |
| Wind Speed (Resolution) | 0℃–70℃ |
| Wind Direction | 0–359.9° |
| Fixed Trestle | Optional: 1.5 Meter Or 1.8Meter Bracket (Extra Cost Applies) |
| Operating Temperature | -30℃ to 70℃ |
| Level of Protection | IP65 |
| Power Supply | DC 9–24V |
| Output | Rainfall Duration, Rainfall Intensity, Maximum Intensity Of Rainfall |
| Cable | 3Meter Cable Line (Optional: 10Meter Cable Line Available) |
