Overview

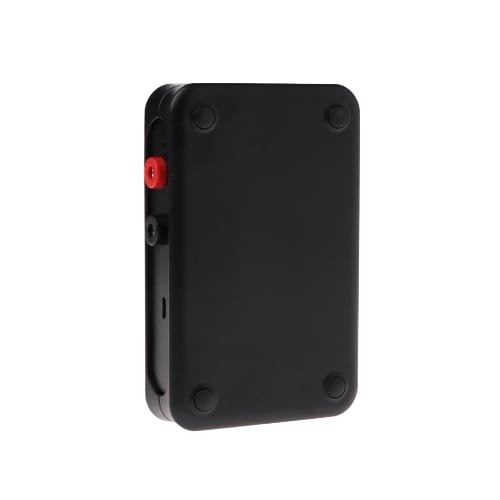

Enviro Testers versatile process signal generator and temperature calibrator supports current, voltage, resistance, RTD, and thermocouple testing. It provides stable and accurate signal input and output for industrial and laboratory use. The device features a simple interface with dedicated buttons for quick operation. Compact and portable, it is suitable for power stations, electronic equipment, and industrial environments.
Features
- Supports current, voltage, mV, resistance, RTD, and thermocouple signals
- Independent input/output with dedicated function buttons
- High measurement accuracy with improved stability
- Capable of simulating both constant and non-constant resistance
- Simple two-terminal connection for easy operation
- Portable compact design with protective carry case
- Includes USB line and test pens for convenience
- Built-in safety fuse to prevent instrument damage
Technical Specifications
| Specification | Details |
| Product Type | Multi-Function Process Signal Generator and Calibrator |
| Application | Power stations, industrial equipment, electronic testing |
| Motor Type | DC powered |
| Material | Plastic housing |
| Signal Functions | Input and output for current, voltage, resistance, RTD, thermocouple |
| Current Output Range | 0–24 mA |
| Voltage Output Range | 0–11 V |
| Millivolt Output Range | 0–110 mV |
| Resistance Output Range | 20–4000 Ω |
| Current Measurement Range | ±30 mA |
| Voltage Measurement Range (V) | ±30 V |
| Voltage Measurement Range (mV) | ±150 mV |
| Resistance Measurement Range | 0–999.9 Ω |
| RTD Input/Output | PT100, Cu50 |
| Thermocouple Types Supported | 8 kinds (standard industrial thermocouples) |
| Input/Output Switching | Electronic switch with function buttons |
| Measurement Functions | Supports constant and non-constant resistance |
| Operating Safety | Disposable fast-blow fuse for protection |
| User Interface | Dedicated input/output buttons |
| Connections | Simple two-terminal design |
| Output Stability | High precision with reduced sensitivity loss |
| Included Accessories | Test pens, USB line, carrying box, user manual |
| Portability | Lightweight and compact handheld design |
| Dimensions (W × H) | 7.6 × 12 cm (2.99 × 4.72 in) |
| Package Quantity | 5 pieces per set |
| Temperature Range | Supports negative and positive temperature measurement |
| Weight | Lightweight handheld device |
