Overview

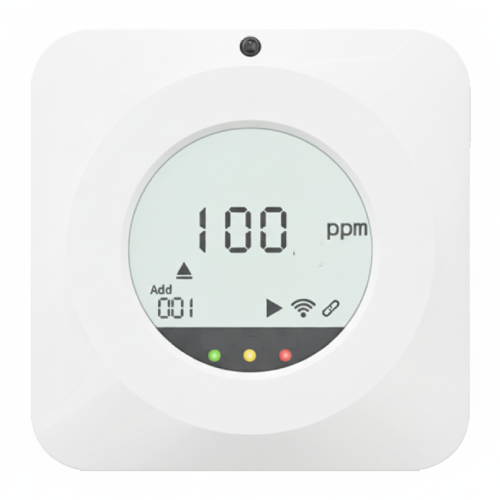

Enviro Testers’s multi-functional ozone gas detector is designed for precise indoor ozone monitoring across industrial, commercial, and residential environments.
It offers a detection range of 0–100 ppm with a resolution of 1 ppm and accuracy of ±6% F.S. The device supports Modbus RS485 communication for easy system integration.
With a wall-mounted design, low power consumption, and stable performance across varying temperatures and pressures, this detector is ideal for continuous air quality monitoring and ozone safety management.
Features
- Multi-functional ozone gas detector with RS485 Modbus output
- Detection range: 0–100 ppm
- High resolution: 1 ppm
- Accuracy: ±6% F.S. at 50 ppm, 25℃, 50% RH
- Repeatability within ≤2%
- Preheat time: ≥5 minutes for stable readings
- Compact, wall-mountable design with low power consumption (0.6 W)
- 12VDC/24VDC input for flexible installation
Technical Specifications
| Specification | Details |
| Target Gas | Ozone (O₃) |
| Measuring Range | 0–100 ppm |
| Resolution | 1 ppm |
| Accuracy | ±6% F.S. (@50 ppm, 25℃, 50% RH) |
| Repeatability | ≤2% |
| Response Time | Preheat ≥5 minutes |
| Output Signal | RS485 (Modbus Protocol) |
| Input Voltage | 12 VDC, 24 VDC (10–30 V DC) |
| Power Consumption | 0.6 W (24 VDC average) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Working Pressure | 90–110 kPa |
