Overview:
The Enviro Testers multi-gas detector with lcd, ip66, alarm & usb upload support gas detector can detect a variety of gases. The product supports up to 4 gases for simultaneous detection. The gas sensor can be flexibly selected according to the site requirements. The product has an intrinsically safe design with IP66 protection and is suitable for harsh environments. The large LCD screen displays various information such as gas concentration and alarm history. The product supports USB data upload, which can easily export alarm record information.
Features:
- Many gases are detectable with flexible selection, up to 4 gases in one detector.
- Support alarm record USB upload, no need any software.
- Sound, light, vibration alarm method, effective warning.
- High-brightness display with gravity sensing for easy viewing at all angles.
- The TPU+PC housing, more wear-resistant.
- Specially designed PCB board, effective against electromagnetic interference, stable work.
- Ingressive protection in IP66 rating, dustproof and waterproof.

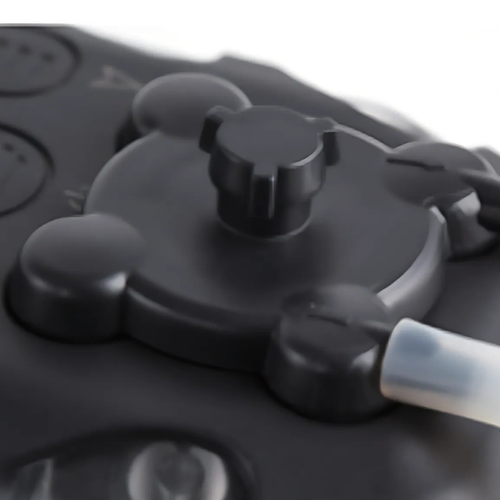

- Compatible with a sampling pump for confined space usage.
Technical Specifications:
| ETEICDGD-101 (A) | ETEICDGD-101(B) | ||
| Gas detected | Combustible gas | ● | ● |
| O₂, toxic gas | ● | – | |
| Measure range | See QUICK-SELECTION-TABLE | ● | ● |
| Response time* | T90 ≤ 30/60/180s | ● | ● |
| Accuracy* | ≤ ±5%F.S | ● | ● |
| Repeatability* | ≤ 2%F.S | ● | ● |
| Sampling method | Diffusion | ● | ● |
| Electric | |||
| Battery | Rechargeable Li-battery 2200mAh | ● | ● |
| Continuous operation | At least 18 hours after a typical 4-hour full charge | ● | ● |
| Alarm | |||
| Alarm method | Sound, LED light, vibration | ● | ● |
| Sound intensity | >90 dB | ● | ● |
| Display and Operation | |||
| Display | LCD | ● | ● |
| Button | 3 (UP, OK, DOWN) | ● | ● |
| Environment | |||
| Ingress protection | IP66 | ● | ● |
| Operating temperature* | -20°C to 60°C | ● | ● |
| Operating humidity | 10% to 95%RH non-condensing | ● | ● |
| Operating pressure | 80 kPa to 120kPa | ● | ● |
| Structure | |||
| Body material | Antistatic PC + TPU | ● | ● |
| Weight | About 0.35kg | ● | ● |
| Dimensions | 1567454mm (HWD) | ● | ● |
