Overview

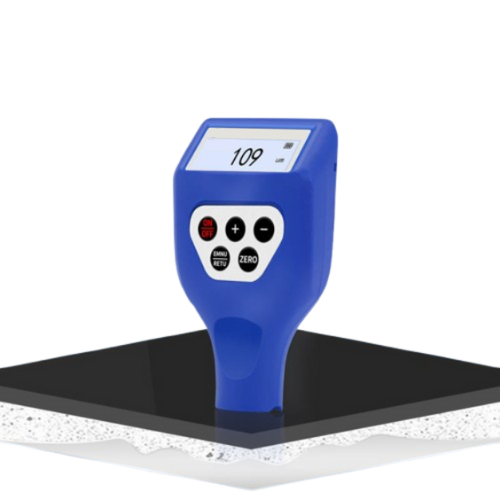

Enviro Testers Paint and Coating Thickness Tester with Bluetooth is a professional, non-destructive testing instrument designed to accurately measure the thickness of paint on car surfaces with metal substrates. It features a ruby probe, rechargeable lithium battery, and Bluetooth real-time data transmission. The device automatically identifies the metal substrate and switches between magnetic and eddy current measurement methods for precise testing. Lightweight and easy to operate, it is suitable for various working environments and ensures reliable, high-precision results.
Features
- Professional non-destructive paint thickness measurement for cars
- Automatically identifies metal substrates for accurate readings
- Switches between magnetic and eddy current measurement methods
- Equipped with a high-precision ruby probe
- Bluetooth real-time data transmission for easy monitoring
- Rechargeable 3.7V lithium battery (1200mAh) for portable use
- Compact and lightweight design for convenient handling
- High measurement accuracy:
- Can measure on curved surfaces
- Durable plastic construction suitable for field and workshop use
Technical Specifications
| Measuring Range (Standard) | 0 μm to 2000 μm |
| Measurement Accuracy | ±(2%H + 1.5) |
| Resolution | 0.1 μm / 1 μm |
| Thinnest Substrate | 0.012 in (0.3 mm) |
| Minimum Curvature | Convex: 0.197 in; Concave: 0.984 in (Convex: 5 mm; Concave: 25 mm) |
| Power Supply | 3.7V Lithium Battery (1200 mAh) |
| Operating Temperature | 5°F to 122°F (-15℃ to 50℃) |
| Operating Humidity | 20% RH – 90% RH (avoid strong magnetic fields) |
| Probe Type | Ruby Probe |
| Material | Plastic |
| Data Transmission | Bluetooth Real-Time |
| Device Weight | 2.54 oz (72 g) |
| External Dimensions | 4.21 in × 2.44 in × 0.98 in (107 mm × 62 mm × 25 mm) |
Reviews
There are no reviews yet.
