Overview

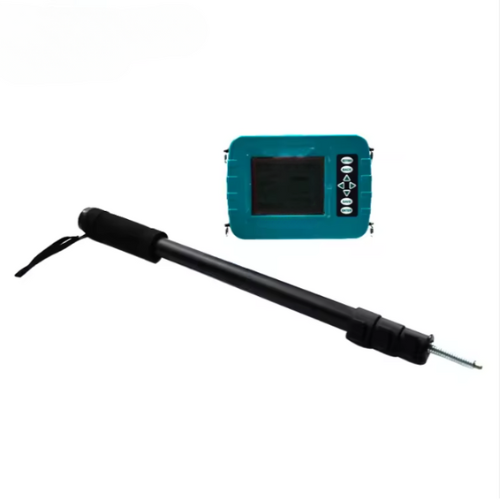

Enviro Testers Portable Concrete Coating Thickness Gauge with High Accuracy and Data Storage is a reliable non-destructive testing instrument designed for accurately measuring the thickness of concrete and other non-ferromagnetic materials. This device operates by placing the transmitter and receiver probes on opposite sides of the concrete surface, transmitting and receiving electromagnetic fields to calculate the material thickness with precision. It offers a wide measuring range of 40 mm to 820 mm, with high accuracy from ±1 mm to ±8 mm depending on the thickness level. This product is equipped with a 5-inch LCD screen for clear data display and features a durable three-proof housing that is waterproof, dustproof, and shockproof, making it suitable for tough working environments.
Features
- Upgraded wireless cloud transmission function.
- Adopt three anti-shell design, waterproof, dust-proof and shock-proof.
- Separate design of probe and main engine facilitates on-site measurement and use by operators.
- Store the measurement results of floor thickness according to components.
- Simple and easy to use, with perfect measurement, storage and analysis functions.
- Stored data is transmitted to computer through USB interface.
- Use Windows software to analyze data and generate test reports.
Technical Specifications
| Screen Size | 5 inch LCD |
| Resolution | 160 x 128 |
| Host Volume | 7.68 in × 5.51 in × 1.77 in (195 mm x 140 mm x 45 mm) |
| Host Weight | – (not specified individually) |
| Host Housing | Waterproof, dustproof, shockproof |
| Thickness Test Range | 1.57 in to 32.28 in (40 mm to 820 mm) |
| Test Accuracy | 1.57 in to 19.69 in: ±0.039 in (40mm to 500 mm: ±1 mm)
19.72 in to 23.62 in: ±0.079 in (501mm to 600 mm: ±2 mm) 23.66 in to 27.56 in: ±0.157 in (601mm to 700 mm: ±4 mm) 27.60 in to 31.50 in: ±0.315 in (701mm to 800 mm: ±8 mm) |
| Data Storage Capacity | 200 Components or 30,000 Measuring Points |
| Data Transmission Mode | USB; Wireless Cloud Transport (optional) |
| Power Supply | Built-in lithium batteries (host and transmitter probes) |
| Working Environment | Temperature: 14°F to 104°F (-10℃ to 40℃)
Humidity: <90% RH Non-strong alternating electromagnetic field Avoid direct sunlight exposure |
| Packing Specification | Material: Engineering plastic
Volume: 16.54 in × 5.51 in × 13.19 in (420 mm x 140 mm x 335 mm) Weight: 229.28 oz (6.5 kg) |
