Overview

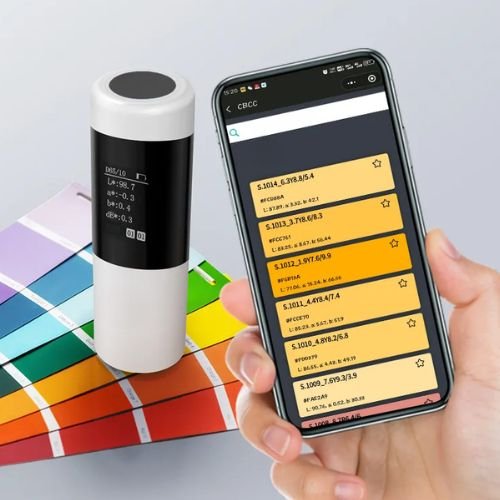

Enviro Testers portable d/8 color reader with dual optical path & app support. The color reader adopts a D/8 optical structure, is compact and convenient to carry. After being wirelessly connected to mobile devices, in addition to color measurement and color card recognition, it can also be extended to multiple functions. You can use it anytime, anywhere to capture color inspiration. color reader is often used for color difference quality control in industries such as plastic electronics, paint coatings, textile and clothing printing and dyeing, ceramics, etc.
Features
- Professional integrating sphere dual optical path design
- Rechargeable lithium battery
- Whiteboard automatic calibration
- Lightweight and portable
- Higher Quality
- Diversified Data Display Modes
- Massive Color Card Database with You
Applications
- Plastic Electronics
- Paint
- Clothing printing and dyeing
- Ceramics
Technical Specifications
| Parameter | Specification |
| Geometry | D/8 (diffuse illumination, 8° direction reception) |
| Features | Used for color difference quality control in industries such as plastic electronics, paint coatings, textile and clothing printing and dyeing, ceramics. |
| Integrating sphere size | Φ20mm |
| Lighting source | Full spectrum LED light source |
| Spectroscopic methods | Light filter splitting |
| Sensors | CMOS dual optical path sensor |
| Measurement wavelength range | 400 ~ 700nm |
| Measure the diameter | Φ8mm |
| Specular component | SCI |
| Color space | CIE LAB, LCh |
| The color difference formula | ΔE*ab |
| Other chromaticity indexes | / |
| Display precision | 0.1 |
| Angle of observer | 10° |
| Illumination | D65 |
| Display | Chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset |
| Measuring time | About 1.0s |
| Repeatability | Chromaticity value: ΔE*ab ≤ 0.1 (after preheating and correction, average value measured 30 times at 5s interval) |
| Measurement requirements | No requirements |
| Measurement method | Single measurement, average measurement (2–99 times) (Implemented through mobile app) |
| Locate mode | / |
| Size | Ø52×100mm |
| Weight | About 88g |
| Battery | Lithium battery, tests up to 12000 times per full charge |
| Illumination source life time | More than 3 million measurements / 5 years |
| Display | 1.14 inch IPS Color LCD |
| Interface | Type C USB, Bluetooth |
| Store the data | Can be stored through the mobile APP |
| Software support | Android, iOS, Windows, Wechat small program, Hong meng, color cloud |
| Whiteboard verification | Automatic check |
| Language | Chinese, English |
| Operating temperature range | 0 ~40°C, 0~85%RH (No condensation), Altitude: lower than 2000m |
| Temperature range | -20 ~ 50 °C 0~ 85%RH (No condensation) |
| Standard accessories | Data line, manual, quality management software, Color matching cloud Wechat applet, MOBOCCS APP (download from the official website) |
| Optional Accessories | USB micro printer, powder test box |
