Overview

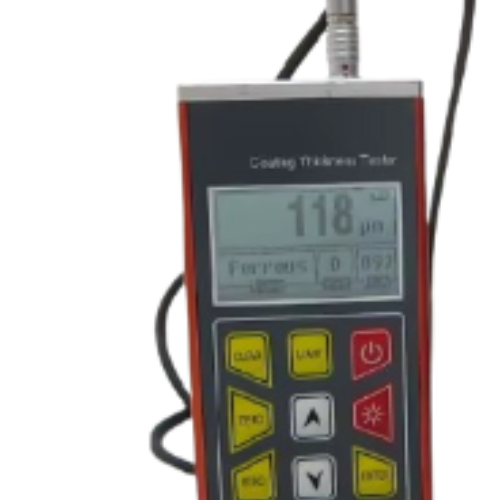

Enviro Testers Precision Chrome & Zinc Coating Thickness Gauge is a versatile and reliable device designed to accurately measure the thickness of non-magnetic coatings on magnetic substrates, such as steel, alloy, and magnetic stainless steel, as well as non-conductive coatings on conductive substrates like aluminum, brass, zinc, and non-magnetic stainless steel. This device supports various optional probes with automatic matching, ensuring precise measurements with its durable ruby probe. Its full metal shell design provides sturdiness, portability, and high reliability. The device features an alarm function to alert users when the measurement exceeds the preset limit, and it calculates five statistical values—MEAN, MAX, MIN, NO., and S.DEV—for enhanced measurement accuracy. It has a large memory storage for easy management of measurement data and optional PC software for convenient data transmission, analysis, and printing. This product operates on AA batteries, offers both metric and imperial units, and features a 128×64 LCD with backlight for clear readings. It is designed to function in temperatures ranging from -10°C to 50°C and can be safely stored between -30°C and 70°C. This device comes complete with standard calibration pieces, substrate samples, a user manual, and a protective instrument case, ensuring that it is ready for accurate coating thickness measurements straight out of the package.
Features
- Measures thickness of non-magnetic coatings on magnetic substrates and non-conductive coatings on conductive substrates
- Supports multiple optional probes with automatic matching
- Durable ruby probe for precise and wear-resistant measurements
- Full metal shell design for sturdiness, portability, and high reliability
- Alarm function for exceeding settable thickness limits
- Calculates five statistical values: MEAN, MAX, MIN, NO., and S.DEV
- Large memory storage for easy management of saved measurements
- Optional PC software for data transfer, analysis, and printing
Technical Specifications
| Measuring Range | Standard 0 μm to 1250 μm (MAX 10000μm with probe F10) |
| Resolution | 0.1μm / 1μm |
| Working Principle | Magnetic & Eddy |
| Substrate | FE / NFe base, depends on probes |
| Accuracy | ±2%H + 1μm (H = thickness reading) |
| Display | 128×64 LCD with backlight |
| Memory | 5 files x 99 values |
| Unit Switch | Metric (μm) / Imperial (mil) |
| Working Temperature | Operation: 14°F to 122°F (-10°C to 50°C) Storage Temp.: -22°F to 158°F (-30°C to 70°C) |
| Power | 2 x AA batteries (Non-aviation transport) |
| Size | 4.92 in × 2.64 in × 1.22 in (125 mm x 67 mm x 31 mm) |
| Weight | 11.99 oz (340 g) |
