Overview

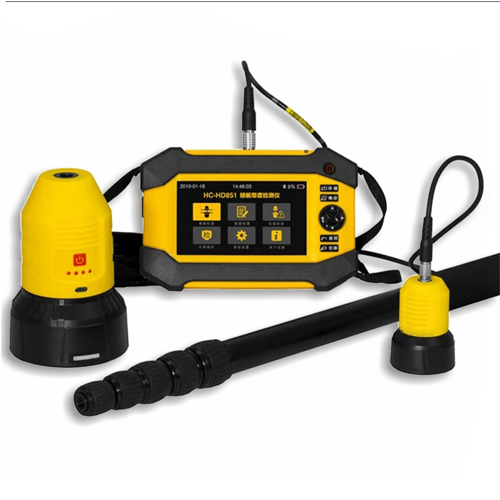

This Thickness Floor Gauge Tester gives floor thickness ranging from 0.89 in to 35.43 in (0.2 cm to 90 cm) with Li-Ion battery, and HD LCD.
Features
- The measured value is displayed in real time, the minimum value is automatically locked
- The manual interpretation mode can be selected, which is convenient for practice Working condition detection
- Data storage and calculation function
- It can access the average value, qualified rate, and other information at any time
- Small size, 5-inch high-definition full-color LCD screen
- 32-bit CPU processor, faster core operation speed
- Smooth, more efficient detection and use
- Receive the probe buzzer and light flashing two item position prompt and transmit the probe power indication for easy inspection Check the remaining power
- Built in Bluetooth chip
- Standard 8.46 in (215 mm) calibration test block to eliminate the deviation of temperature and humidity on the test results
- Support remote instrument software upgrade, enjoy convenient service support, PC driver self-adaptation and drive free
- Installation
- Built in high-capacity imported lithium battery with low power consumption design, which can work continuously for more than 24 hours after the battery is fully charged
- Professional data processing software can easily generate test reports
Technical Specifications
| Thickness measurement range | 0.89 in to 35.43 in (0.2 cm to 90 cm) |
| Data storage capacity | 1000 components or 220000 measuring points |
| Emission probe volume | ∅ 3.86 in x 5.79 in (98 mm x 147 mm) |
| Receiving probe size | ∅ 2.09 in x 2.8 in (53 mm x 71 mm) |
| Host power supply | High-capacity lithium battery can work for 24 hrs. |
| Probe power supply | High-capacity lithium battery can work for 64 hrs. |
| Host volume | 7.48 in x 4.92 in x 1.87 in (190 mm x125 mm x 47.5 mm) |
