Features
- All channels synchronous collection
- One sensor collects both vibration and temperature
- Alarm SMS/EMAIL for both vibration and temperature data
- Intelligent alarm: minimal sampling value (RMS) interval 5min, good coverage of machine operation
- Wireless work mode, no need wiring work, saving wiring cost,
Easy to Install - Multiple communication options
- Convenient installation

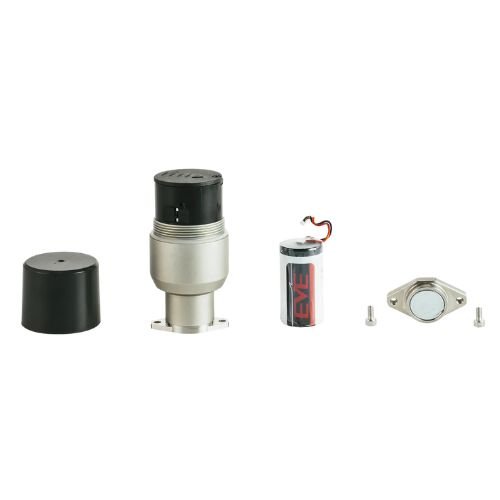

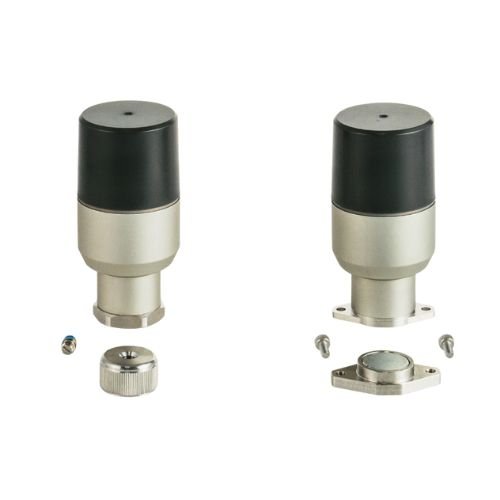

RONDS IWMS has no signal cable during installation, 2 years battery life of wireless accelerometer, secure installation of accelerometer with magnet base and M6 bolt. Satisfy the requirement of explosion proof degree on site - Four in one sensor–vibration and temperature integrated sensor
Integrated design, synchronous collection of acceleration, velocity and displacement and temperature
Technical Parameters
| Vibration measurement parameter | |
| Vibration range | Piezoelectric: ±50 g (Peak value) Two MEMS: ±16 g (Peak value) |
| Linearity | 1% |
| Frequency response | Piezoelectric:2-20000Hz (±3 dB) MEMS:2-1000Hz (±3 dB) |
| Analysis frequency | Piezoelectric:500Hz,1000Hz,2000Hz,5000Hz,10000Hz,20000Hz MEMS:500Hz,1000Hz |
| Long waveform acquisition | Piezoelectric: Sampling length:256K,512K,1M,2M Analysis frequency:5000HZ,10000HZ,20000HZ |
| Measuring definition | Piezoelectric direction: Sampling length 1K,2K,4K,8K,16K,32K,64K,128K MEMS direction: Sampling length:1K,2K,4K,8K,16K |
| Indicator collection | Supported |
| Alarm | Supported |
| Temperature measurement parameter | |
| Temperature range | -40 ºC to 125 ºC |
| Temperature measurement accuracy | ±1 ºC (-40ºC to 125ºC) |
| Electrical and structural parameters | |
| Power | Lithium-thionyl chloride battery 8500mAh |
| Way of communication | 2.4GHz IEEE 802.15.4 |
| Transmission distance | Interference free access 300m |
| Size | 46.5 mm × 93.6 mm (Diameter × height) |
| Weight | About 210 g |
| Mounting thread size | Metric M6 |
| Installation method | Bolt mounting or metal gluing |
| Environmental parameters | |
| Operating temperature | -40 ºC to 70 ºC |
| IP rating | IP67 |
| Explosion-proof grade | ExiaIICT4 (Can be used in Zone 0, Zone 1, Zone 2) |

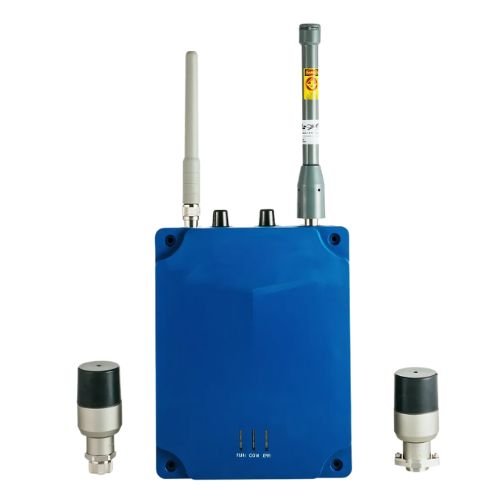

| Wireless data collector | |
| Input and output | |
| Communication with Sensor | 2.4GHz IEEE 802.15.4 |
| Indicator LED | Total 3 pieces (working, communication, abnormal status) |
| Number of connecting | 30 to 60 units according to real application condition |
| Electrical and Structure Parameter | |
| Power Supply | 220V AC |
| Dimension | 203 mm × 82 mm × 260 mm (Length * Width * Height) |
| Weight | 3 kg |
| Mounting | Hanging or fixation through holder |
| Environmental Parameter | |
| Working Temperature | -40°C to 70 °C |
| IP grade | IP66 |
